EN 50155 Wi-Fi 6E Access Point



✓ Reliable, compact and secure WLAN access point

• Triple Wi-Fi 6 / 802.11ax WLAN interfaces
• Concurrent 2.4 GHz, 5 GHz and 6 GHz
• Low power consumption
• Cybersecurity features supporting critical infrastructure installations

✓ Designed for onboard usage

• EN 50155 and EN 45545-2 certified
• Compact design with M12 interfaces
• Wide temperature range

✓ Latest generation 802.11 design

• IEEE 802.11ax for maximum efficiency
• Client management features
• Flexible and easy setup


The Ibex-3510 is a concurrent triple-band 802.11ax Wi-Fi 6E access point and client product for onboard and stationary applications. It provides reliable efficient high-speed data transfers, airtime fairness, band steering, client steering and multi-AP steering. This enables optimized use for passenger hotspot applications, remote maintenance access, data offloading or it can be part of a TCMS network.

The Ibex-3510 is designed to withstand the tough environment on-board trains, exposed to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.

A GORE-TEX® membrane prevents internal condensation. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and spikes/surge. IP66 protection prevents ingress of water and dust even at the quick connect QMA connectors.

An overall optimised design results in a compact form factor in combination with very high MTBF for easy integration in space restricted installations and low lifecycle cost.

Thorough type testing at independent labs certifies the compliance to a wide range of standards, including EN 50155.

Powered by the IbexOS operating system, the Ibex-3510 is equipped with the latest cybersecurity features and updates.

Read more

Technical Specifications

EN50155 Wi-Fi 6E Tri-band Radio Access Point
Concurrent 2.4 GHz, 5 Ghz and 6 GHz

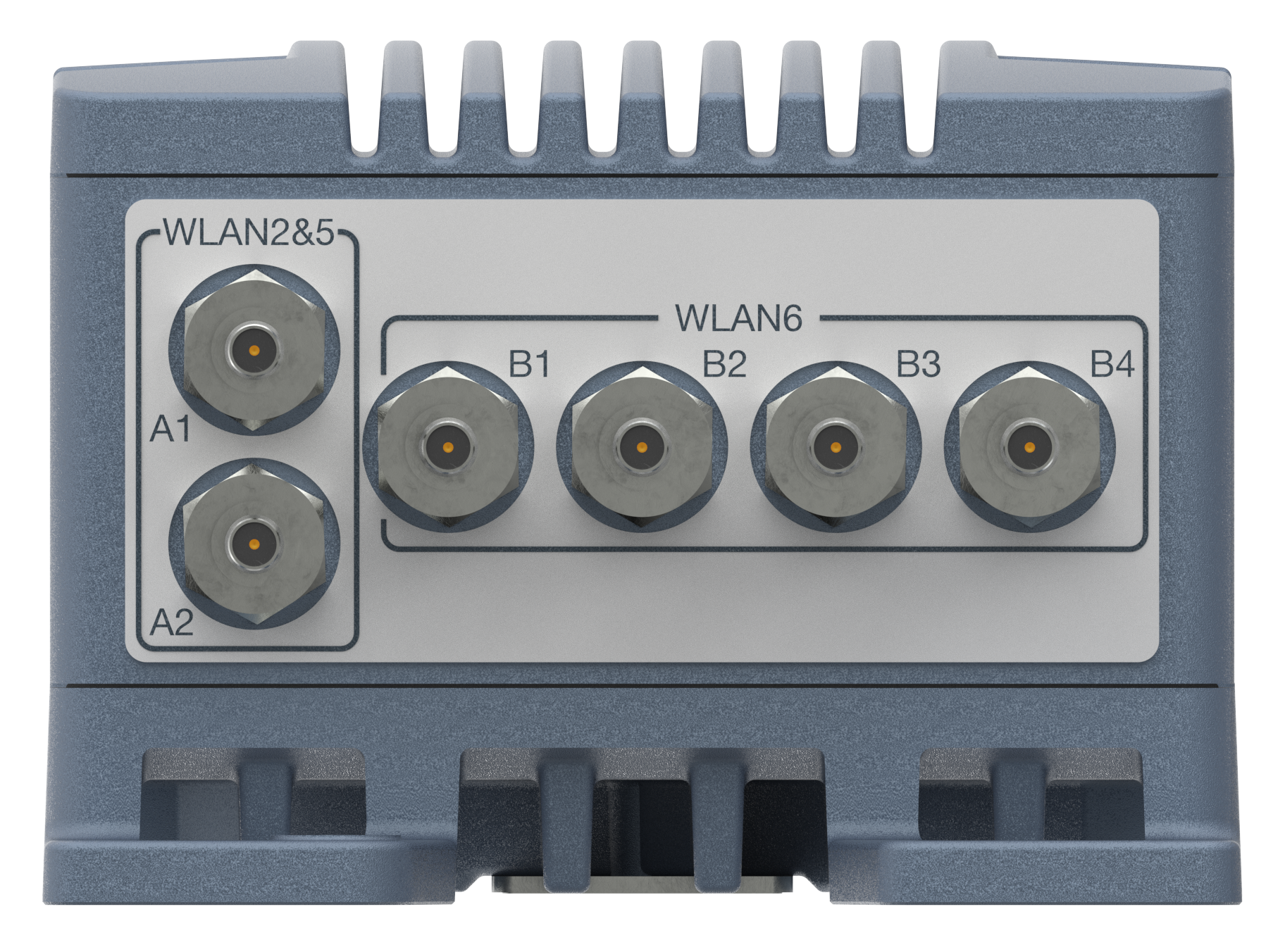

6 x QMA compatible antenna connectors
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
