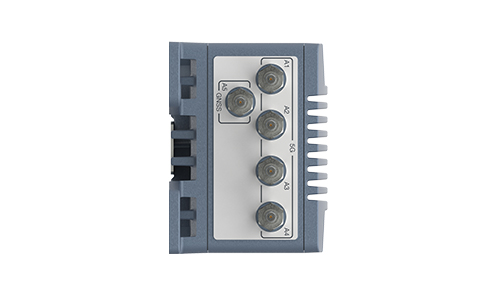

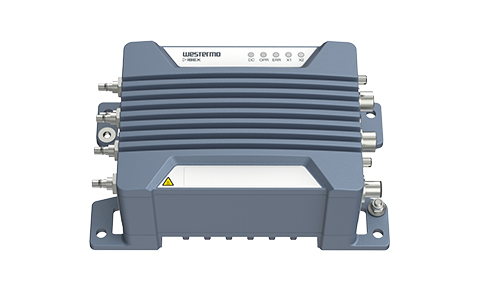

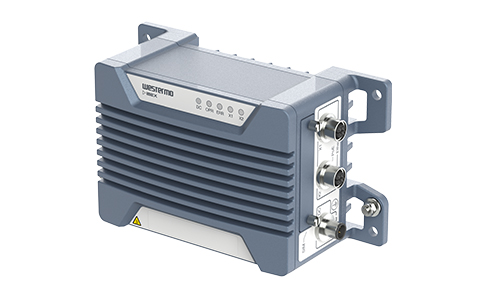

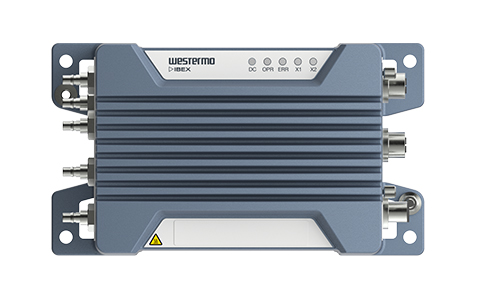

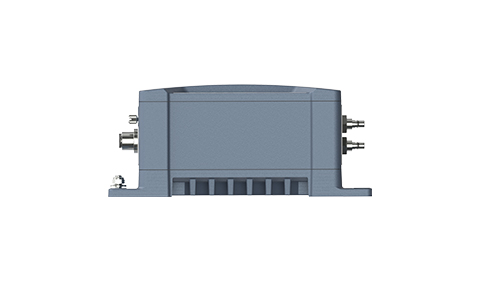

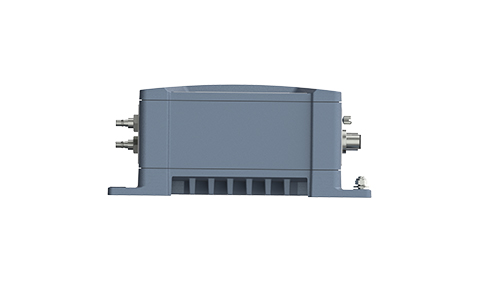

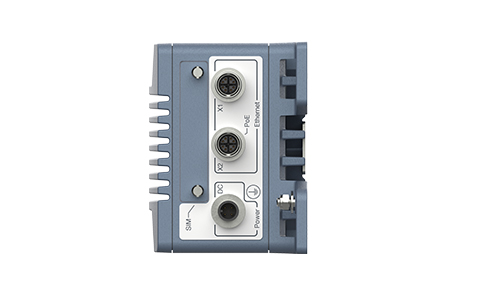

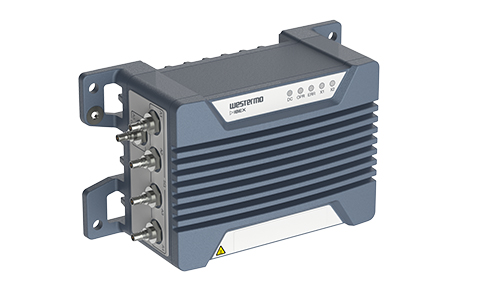

EN 50155 5G Router

Ibex-RT-330-5G

Eigenschaften

✔ Mobile broadband 5G router

• 3GPP Release 16 - 5G NSA/SA
• 5G sub 6 GHz 4x4 MIMO interface
• Mobile communication Gateway LTE and 5G

✔ Designed for onboard usage

• EN 50155 and EN 45545-2 certified
• Compact design with M12 interfaces
• Wide temperature range

✔ High bandwidth supports multiple applications

• Data offloading
• Remote monitoring
• Video surveillance
• Preventive maintenance

Zusammenfassung

The Ibex-RT-330-5G is a mobile 5G router for onboard usage in trains, trams, locomotives, mining vehicle and bus applications. The Ibex-RT-330-5G offers outstanding performance and rugged internet connectivity back-up to enable hybrid train-to-ground installations with a single device.

The Mobile Communication Gateway (MCG) router is designed to withstand the tough onboard environmental conditions and can be remotely managed using web browser or SNMP management tools. The MCG provides advanced firewall functionalities and high-performance VPN connectivity.

The router exceeds the high requirements for the most bandwidth-demanding applications worldwide and features wide range of bands. A compact design enables quick and easy installation into the tight spaces of trains, while configuration and unit replacement are simplified by a SIM card memory for configuration parameters. Dual SIM allows for further performance optimisations and carrier redundancy. IP66-rating and a wide temperature range from -40 °C to +70 °C ensure that the devices can be installed virtually anywhere, without the need of additional protection.

Meeting the requirements of the rail market, Ibex-RT-330-5G is very well-suited for any deployment in challenging environments. Adopting the 3GPP Rel-16 technology, it supports both 5G NSA and SA modes.

mehr dazu

Technische Daten

EN 50155 5G Router
4x4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
