DNV GL Zertifizierungen

BRD-355A | BRD-355B

Industrial ADSL/VDSL Router
BRD-335A (Annex A)
BRD-355B (Annex B and Annex J)
1 x RS-232, 300 bit/s – 115.2 kbit/s
2 x Ethernet TX, 10 Mbit/s or 100 Mbit/s
1 x DSL, RJ-11

CyBox AP 2-W

Railway WLAN Access Point with Wi-Fi 5 dual radio
3x3 MIMO
6x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC

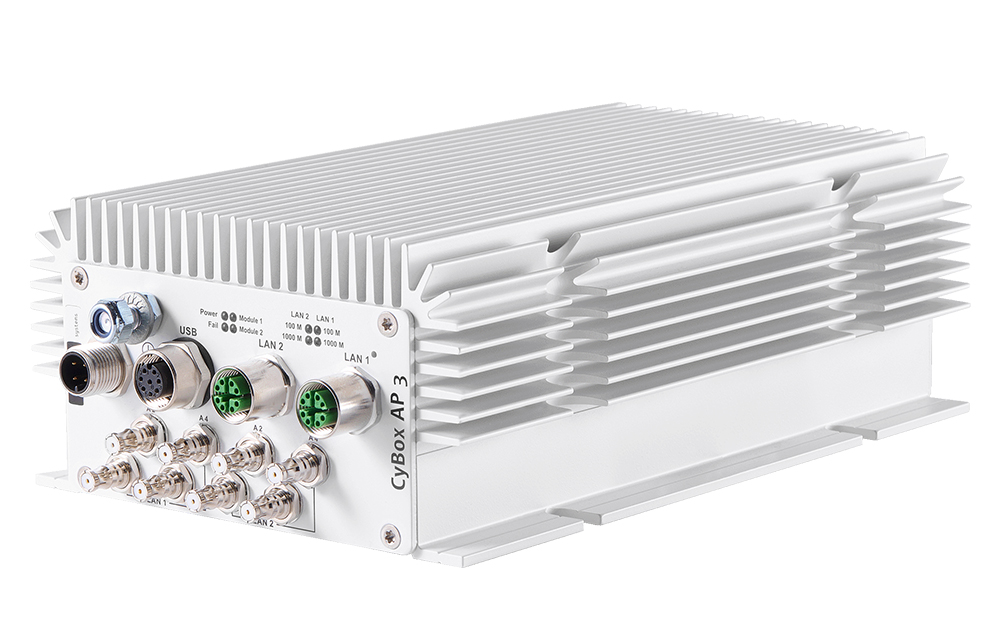

CyBox AP 3-W

Railway WLAN Access Point with Wi-Fi 5 Wave 2 dual radio
4x4 MU-MIMO
4x or 8x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC

CyBox AP-A

Railway WLAN Access Point with Wi-Fi 5 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac
3x3 MIMO
3x RF antennas
1x 1 Gbps port, M12 connector
PoE+

Ibex-A2510

Railway WLAN Access Point with Wi-Fi 6 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac/ax
3x3 MU-MIMO with 5 GHz or 2.4 GHz per Wi-Fi interface
6x integrated RF antennas
1x 1 Gbps port, M12 connector
PoE+

CyBox GW 2-P

EN 50155 Mobile Wireless 5G Gateway
3x3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4x SIM card slots for each 5G interface
2x 1 Gbps ports, M12 connectors
Up to 2x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC

CyBox GW-P

EN 50155 Mobile Wireless LTE Gateway
3x3 MIMO
11x or 13x QLS connectors
Up to 5x LTE CAT-7
1 GNSS
4 SIM card slots per each LTE interface
2x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC

CyBox LTE 2-W

EN 50155 LTE and Wi-Fi Router
3x3 MIMO LTE CAT-7
5x or 6x QLS or 3x SMA antenna connectors
2x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC

CyBox RT 2-A

Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
3x3 MIMO
11x QLS antenna connectors
5x 1 Gb ETH, RJ45 ports
1 GNSS
Power feed 12 to 24 VDC

CyBox RT 3-W

EN 50155 5G and Wi-Fi 5 Router
4x4 MIMO
9x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC

DDW-120

Ethernet SHDSL Extender
Abnehmbare Schraubklemme mit 2 Positionen,
192 kbit / s bis 15,3 Mbit / s
1 x 2,5 mm Klinke,
115,2 kbit / s

DDW-142

Industrieller Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-polige abnehmbare Schraubklemmen für SHDSL-Anschlüsse
1x RJ-45, RS-232-Anschluss 300 Bit / s - 115,2 kbit / s

DDW-142-12VDC

Industrieller Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-polige abnehmbare Schraubklemmen für SHDSL-Anschlüsse
1x RJ-45, RS-232-Anschluss 300 Bit / s - 115,2 kbit / s

DDW-142-12VDC-BP

Industrieller Ethernet Extender mit Bypass Funktion
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-polige abnehmbare Schraubklemmen für SHDSL-Anschlüsse
1x RJ-45, RS-232-Anschluss 300 Bit / s - 115,2 kbit / s

DDW-142-485

Industrieller Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-polige abnehmbare Schraubklemmen für SHDSL-Anschlüsse
1x abnehmbare Schraubklemme mit 4 Positionen für RS-422/485-Anschluss

DDW-242

Erweiterter Industrieller Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-polige abnehmbare Schraubklemmen für SHDSL-Anschlüsse
1x RJ45, RS-232 Port 300Bit/s - 115.2KBit/s

DDW-242-12VDC

Erweiterter Industrieller Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-polige abnehmbare Schraubklemmen für SHDSL-Anschlüsse
1x RJ45, RS-232 Port 300Bit/s - 115.2KBit/s

DDW-242-12VDC-BP

Erweiterter Industrieller Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-polige abnehmbare Schraubklemmen für SHDSL-Anschlüsse
1x RJ45, RS-232 Port 300Bit/s - 115.2KBit/s

DDW-242-485

Erweiterter Industrieller Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-polige abnehmbare Schraubklemmen für SHDSL-Anschlüsse
1x 4 polige Schraubklemme für RS-422/485 Schnittstelle

EDW-100

Serieller Adapter
1 x RS-422/485 abnehmbare Schraubklemme mit 4 Positionen, 300 Bit / s bis 115,2 kbit / s
1 x RS-232 9-pol. D-Sub, 300 Bit / s bis 115,2 kbit / s
1 x RJ-45, 10 Mbit / s oder 100 Mbit / s

EDW-120

Serial Adapter
2 x RS-232 9-pin D-sub, 300 bit/s to 115.2 kbit/s
1 x RJ-45, 10 Mbit/s or 100 Mbit/s

GW1042W-X-QFR

Rugged Compact 4G/LTE Router with optional WiFi
2 x 10/100 Mbit/s, RJ-45
2 x SIM card slot
2 x SMA female WiFi antenna connector (optional)

GW2304-PE4-2DI2O-QFR

Industrial PoE+ LTE Router
4 x 100/1000 Mbit/s, PoE+, RJ-45
2 x Digital input
2 x Relay contact output
2 x Micro SIM card slot
1 x GPS SMA female antenna connector

Ibex-1510

EN50155 Wi-Fi 6 Dual Radio Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz
2 x QMA compatible antenna connectors
with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+

Ibex-3510

EN50155 Wi-Fi 6E Tri-band Radio Access Point
Concurrent 2.4 GHz, 5 Ghz and 6 GHz
6 x QMA compatible antenna connectors
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+

Ibex-RT-220

EN 50155 WLAN 2x2 Client/Bridge/Access Point
2x2 MIMO
2 x QMA compatible antenna connectors
2 x 100 Mbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

Ibex-RT-280

Infrastructure WLAN Access Point
2 x 2 MIMO with separated monitoring interface
3 x N-type antenna connectors
2 x 100 Mbps fibre optic ports with ODC-2 connectors
1 x 1 Gbps port, M12 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC

Ibex-RT-320

EN 50155 WLAN 3x3 Client/Bridge/Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV:24 VDC or PoE, HV: 72 to 110 VDC

Ibex-RT-330

EN 50155 LTE Router and Mobile Communication Gateway
2x2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

Ibex-RT-330-5G

EN 50155 5G Router
4x4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE

Ibex-RT-370

WLAN Infrastructure Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
1 x Gbps port, M12 connector
1 x Gbps fibre optic port, ODC-2 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC or PoE

Ibex-RT-610

EN 50155 WLAN Dual Radio Access Point
4x4 MU-MIMO 5 GHz
2x2 MIMO 2.4 GHz
6 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

Ibex-RT-630

EN 50155 LTE and WLAN Router
2x2 MIMO LTE-A Cat-12
3x3 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

Ibex-RT-630-5G

EN 50155 5G and WLAN Router
4x4 MIMO 5G 3GPP Rel 16
2x2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE

ICL-5

Inter-Consist Link Antenna 5 GHz
3 x QMA (f) connectors

Lynx 3306-F2G-T4-LV

Industrial Layer 2 Switch
4 x RJ45, 10/100/BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

Lynx 3306-E-F2G-T4-LV

Industrial Layer 3 Switch
4 x RJ45, 10/100/BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

Lynx 3310-F2G-T8-LV

Industrial Layer 2 Switch
8 x RJ45, 10/100BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

Lynx 3310-E-F2G-T8-LV

Industrial Layer 3 Switch
8 x RJ45, 10/100BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

Lynx 3510-F2G2.5-P8G-LV

Industrial Layer 2 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
Max. 240W total PD consumption
Max. 30W per PoE port
-40 to +70°C

Lynx 3510-E-F2G2.5-P8G-LV

Industrial Layer 3 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
Max. 240W total PD consumption
Max. 30W per PoE port
-40 to +70°C

Lynx 3510-F2G2.5-T8G-LV

Industrial Layer 2 Gigabit Switch
8 x RJ45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

Lynx 3510-E-F2G2.5-T8G-LV

Industrial Layer 3 Gigabit Switch
8 x RJ45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

Lynx 3510-F2G-P8G-LV

Industrial Layer 2 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
Max. 240W total PD consumption
Max. 30W per PoE port
-40 to +70°C

Lynx 3510-E-F2G-P8G-LV

Industrial Layer 3 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
Max. 240W total PD consumption
Max. 30W per PoE port
-40 to +70°C

Lynx 3510-F2G-T8G-LV

Industrial Layer 2 Gigabit Switch
8 x RJ45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

Lynx 3510-E-F2G-T8G-LV

Industrial Layer 3 Gigabit Switch
8 x RJ45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

Lynx 5512-F4G-T8G-LV

Industrieller GigaBit Switch
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP Transceiver, Ethernet FX (LC)

Lynx 5512-E-F4G-T8G-LV

Industrieller GigaBit Switch
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP Transceiver, Ethernet FX (LC)

Lynx 5612-F4G-T8G-LV

IEC 61850-3 Substation Automation Switch, Layer 2
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)

Lynx 5612-E-F4G-T8G-LV

IEC 61850-3 Substation Automation Switch, Layer 3
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)

L105-S1

Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s

L106-F2G

Managed Ethernet Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP Transceivers, Ethernet FX (LC) oder TX SFP (RJ-45)

L106-S2

Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

L108-F2G-S2

Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

L108-F2G-S2-12VDC

Managed Device Server Switch - 12 volt version
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

L110-F2G

Managed Ethernet Switch
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

L110-F2G-12VDC

Managed Ethernet Switch - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

L205-S1

Managed Device Server Switch mit Routingfunktionalität
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s

L206-F2G

Managed Ethernet Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

L206-S2

Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

L208-F2G-S2

Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s,
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

L208-F2G-S2-12VDC

Managed Device Server Switch - 12 volt version
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

L210-F2G

Managed Ethernet Switch with Routing Functionality
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

L210-F2G-12VDC

Managed Ethernet Switch with Routing Functionality - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

LD-02

Line sharing modem
1x 10 mA tri-state balanced current loop up to 38.4 kbit/s
1 x RS-232 up to 38.4 kbit/s
1 x RS-422/485 up to 38.4 kbit/s

LRW-702-F2

Fibre optic repeater for TP/FT-10
1 x LonWorks®, TP/FT-10, 78 kbit/s

MCW-211-F1G-T1G

Industrial Ethernet Gigabit Media Converter
1 x RJ-45, 10 Mbit/s, 100 Mbit/s or 1 Gbit/s
1x SFP (LC connector), 100 Mbit/s or 1 Gbit/s, transceivers supported

MCW-211-MM-LC2

Industrial Ethernet Media Converter
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
1 x fibre port using multimode fibre with LC connectors, 100 Mbit/s

MCW-211-MM-SC2

Industrial Ethernet Media Converter
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
1 x fibre port using multimode fibre with SC connectors, 100 Mbit/s

MCW-211-SM-LC15

Industrial Ethernet Media Converter
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
1 x fibre port using singlemode fibre with LC connectors, 100 Mbit/s

MCW-211-SM-LC40

Industrial Ethernet Media Converter
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
1 x fibre port using singlemode fibre with LC connectors, 100 Mbit/s

MCW-211-SM-SC15

Industrial Ethernet Media Converter
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
1 x fibre port using singlemode fibre with SC connectors, 100 Mbit/s

MD-12 DC

Short-haul modem, point-to-point
1x 10 mA tri-state balanced current loop up to 38.4 kbit/s
1x RS-232 up to 38.4 kbit/s

MD-21 DC

20 mA Current loop converter
1 x 20 mA current loop up to 19.2 kbit/s
2 x RS-232 up to 19.2 kbit/s

MD-52 DC

RS-232 Isolator
1 x RS-232 female up to 115.2 kbit/s
1 x RS-232 male up to 115.2 kbit/s
2 x RS-232 detachable screw terminal up to 115.2 kbit/s

MDW-45 HV

RS-422/485 Converter
1 x RS-422/485 4-position detachable screw terminal, 300 bit/s to 115.2 kbit/s
1 x RS-232 9-pin D-sub, 1200 bit/s to 115.2 kbit/s

MDW-45 LV

RS-422/485 Converter
1 x RS-422/485 4-position detachable screw terminal, 300 bit/s to 115.2 kbit/s
1 x RS-232 9-pin D-sub, 1200 bit/s to 115.2 kbit/s

Merlin-4106-T4-S1-DI1

Industrial Cellular Router
LTE Cat 4
Trusted Platform Module
Secure Boot
9.6 - 60V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS232 or Digital Input

Merlin-4106-T4-S1-DI1-QFT

Industrial Cellular Router
LTE Cat-M1/NB-IoT
Trusted Platform Module
Secure Boot
9.6 - 60V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS232 or Digital Input

Merlin-4405-T4-LV

Industrial 4G LTE Cellular Router
Trusted Platform Module
Secure Boot
Isolated power input 9.6V - 60V DC
4 x 10/100 Mbit/s Ethernet, RJ45
2 x Mini SIM slot
1 x GNSS SMA female antenna connector

Merlin-4407-T4-S2-LV

Industrial 4G LTE Cellular Router
Trusted Platform Module
Secure Boot
Isolated power input 9.6V - 60V DC
4 x 10/100 Mbit/s Ethernet, RJ45
2 x Serial ports RS-232/RS485
2 x Mini SIM slot
1 x GNSS SMA female antenna connector

Merlin-4605-T4-DI6-DO2-LV

Industrial IEC 61850-3 Cellular Router
LTE Cat 4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
1 x GPS SMA female antenna connector

Merlin-4607-T4-S2-LV

Industrial IEC 61850-3 Cellular Router
LTE Cat 4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
1 x GPS SMA female antenna connector

Merlin-4609-F2G-T4-S2-DI6-DO2-LV

Industrial IEC 61850-3 Cellular Router
LTE Cat 4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
2 x 1000 Mbit/s SFP
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
1 x GPS SMA female antenna connector

Merlin-4708-V-T4G-S2-DI6-DO2-LV-QFR

Industrial VDSL LTE Cellular Router
LTE Cat 4
Trusted Platform Module
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ11
4 x GbE RJ-45
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45

MRD-405

Industrial 4G LTE Gateway/Router
2 x 10/100 Mbit/s, RJ-45
1 x Mini-SIM slot

MRD-415

Industrial 4G Router
2 x 10/100 Mbit/s, RJ-45
1 x RS-232 port, 300 bit/s – 115.2 kbit/s
1 x SIM slot

MRD-455

Industrial 4G LTE Cellular Router - EMEA/APAC version
2 x 10/100 Mbit/s, RJ-45
1 x RS-232 port, 300 bit/s – 115.2 kbit/s
2 x Mini-SIM slots

ODW-710-F1

Point-to-Point Fibre Converter PROFIBUS
1 x PROFIBUS DP 9 600 bit/s – 12 Mbit/s

ODW-710-F2

Ring / Multidrop Fibre Converter PROFIBUS
1 x PROFIBUS DP 9 600 bit/s – 12 Mbit/s

ODW-720-F1

Point-to-Point Fibre Converter RS-232
1 xRS-232 port 300 bit/s – 250 kbit/s

ODW-720-F2

Ring / Multidrop Fibre Converter RS-232
1 xRS-232 port 300 bit/s – 250 kbit/s

ODW-730-F1

Point-to-Point Fibre Converter RS-422/485
1 x RS-422/485 port 300 bit/s – 1.5 Mbit/s

ODW-730-F2

Ring / Multidrop Fibre Converter RS-422/485
1 x RS-422/485 port 300 bit/s – 1.5 Mbit/s

PII-2G

Industrial 2-port PoE Injector
2 x 10/100/1000 TX data in ports
2 x 10/100/1000 TX IEEE 802.3af/at PoE ports

PS-60

DIN-rail Power Supply
Input voltage: 100 to 240 VAC, 50 to 60 Hz or 110 to 250 VDC
Output voltage: 24 to 28 VDC
Output current: 2,5A

PS-260

DIN-rail Power Supply Unit
Input voltage: 100 to 240 VAC, 50 to 60 Hz or 110 to 159 VDC
Output voltage: 48 to 56 VDC
Output current: 4.0 A to 6.0 A

PSI-010-FT2G-P8G

Industrial Gigabit PoE+ Booster Switch
802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
2 x 1 Gbit/s RJ-45/SFP combo ports
Max. 240W total PD consumption
Max. 30W per PoE port
-40 to +75°C

RD-48 LV

RS-422/485 Repeater
2 x 4-position detachable screw terminal, 300 bit/s to 1.5 Mbit/s

RedFox-5328-F4G-T24-HV

19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
110 to 240 V AC/DC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5328-E-F4G-T24-HV

19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5328-F4G-T24-LV

19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5328-E-F4G-T24-LV

19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5528-F4G-T24G-HV

19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5528-E-F4G-T24G-HV

19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5528-F4G-T24G-LV

19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5528-E-F4G-T24G-LV

19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5528-F16G-T12G-HV

19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5528-E-F16G-T12G-HV

19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5528-F16G-T12G-LV

19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5528-E-F16G-T12G-LV

19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RedFox-5528-T28G-HV

19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5528-E-T28G-HV

19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5528-T28G-LV

19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5528-E-T28G-LV

19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-F4G-T24G-HV

19" Managed Substation Automation Switch - High voltage version, layer 2
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-E-F4G-T24G-HV

19" Managed Substation Automation Switch - High voltage version, layer 3
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-F4G-T24G-HVHV

19" Managed Substation Automation Switch - Dual high voltage version, layer 2
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-E-F4G-T24G-HVHV

19" Managed Substation Automation Switch - Dual high voltage version, layer 3
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-F4G-T24G-LV

19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-E-F4G-T24G-LV

19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-F4G-T24G-LVLV

19" Managed Substation Automation Switch - Dual low voltage version, layer 2
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-E-F4G-T24G-LVLV

19" Managed Substation Automation Switch - Dual low voltage version, layer 3
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-F16G-T12G-HV

19" Managed Substation Automation Switch - High voltage version, layer 2
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-E-F16G-T12G-HV

19" Managed Substation Automation Switch - High voltage version, layer 3
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-F16G-T12G-HVHV

19" Managed Substation Automation Switch - Dual high voltage version, layer 2
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-E-F16G-T12G-HVHV

19" Managed Substation Automation Switch - Dual high voltage version, layer 3
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-F16G-T12G-LV

19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-E-F16G-T12G-LV

19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-F16G-T12G-LVLV

19" Managed Substation Automation Switch - Dual low voltage version, layer 2
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-5728-E-F16G-T12G-LVLV

19" Managed Substation Automation Switch - Dual low voltage version, layer 3
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

RedFox-7528-F4G10-F12G-T12G-LV

19” Managed 10 Gigabit Ethernet Switch - low voltage, layer 2
24 to 48 VDC
4 x 10 Gbit/s, SFP+
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
12 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

RFI-111-F4G-T7G

Managed Ethernet Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

RFI-119-F4G-T7G

Managed Ethernet Switch
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

RFI-211-F4G-T7G

Industrial Routing Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

RFI-211-T3G

Industrial Routing Switch
3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
8 x 10/100 Mbit/s, Ethernet TX, RJ-45

RFI-219-F4G-T7G

Industrial Routing Switch
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

RFI-219-F4G-T7G-F8

Industrial Routing Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 100 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

RFI-219-T3G

Industrial Routing Switch
3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 10/100 Mbit/s, Ethernet TX, RJ-45

RFIR-127-F4G-T7G-AC

19” Rackmount Managed Ethernet Switch AC version
100 to 240 VAC 50 to 60 Hz
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
16 x 10/100 Mbit/s, Ethernet TX, RJ-45

RFIR-127-F4G-T7G-DC

19” Rackmount Managed Ethernet Switch DC version
16 to 60 VDC
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
16 x 10/100 Mbit/s, Ethernet TX, RJ-45

RFIR-219-F4G-T7G-AC

19” Industrial Routing Switch AC version
100 to 240 VAC 50 to 60 Hz
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 10/100 Mbit/s, Ethernet TX, RJ-45

RFIR-219-F4G-T7G-DC

19” Industrial Routing Switch DC version
16 to 60 VDC
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 10/100 Mbit/s, Ethernet TX, RJ-45

RFIR-227-F4G-T7G-AC

19” Industrial Routing Switch AC version
100 to 240 VAC 50 to 60 Hz
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
16 x 10/100 Mbit/s, Ethernet TX, RJ-45

RFIR-227-F4G-T7G-DC

19” Industrial Routing Switch DC version
16 to 60 VDC
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
16 x 10/100 Mbit/s, Ethernet TX, RJ-45

SandCat-2305-F1-MM-T4-LV

Industrial Ethernet 5-port Unmanaged Switch
4 x 10/100 Base T(X) ports
1 x 100 Base F(X) multi-mode SC port

SandCat-2305-F1-SM-T4-LV

Industrial Ethernet 5-port Unmanaged Switch
4 x 10/100 Base T(X) ports
1 x 100 Base F(X) single-mode SC port

SandCat-2305-T5-LV

Industrial Ethernet 5-port Unmanaged Switch
5 x 10/100 Base T(X) ports

SDI-541-MM-SC2

Compact 4-port Ethernet Fibre Switch
4x 10/100 Base T ports
1x 100 Base FX multi-mode SC port

SDI-541-SM-SC30

Compact 4-port Ethernet Fibre Switch
4x 10/100 Base T ports
1x 100 Base FX single-mode SC port

SDI-550

Compact 5-port Ethernet Switch
5x 10/100 Base T ports

SDI-862-MM-SC2

Unmanaged 8-port Ethernet Fibre Switch
6 x 10/100 Base T ports
2 x 100 Base-FX ports multi-mode SC connector

SDI-862-SM-SC30

Unmanaged 8-port Ethernet Fibre Switch
6 x 10/100 Base T ports
2 x 100 Base-FX ports single-mode SC connector

SDI-880

Unmanaged 8-port Ethernet Switch
8x 10/100 Base T ports

SDW-532-MM-LC2

Industrial Ethernet 5-port Switch
3 x 10/100 Mbit/s Base T ports
2 x 100 Mbit/s Base FX ports LC connectors

SDW-532-MM-SC2

Industrial Ethernet 5-port Switch
3 x 10/100 Mbit/s Base T ports
2 x 100 Mbit/s Base FX ports SC connectors

SDW-532-SM-LC15

Industrial Ethernet 5-port Switch
3 x 10/100 Mbit/s Base T ports
2 x 100 Mbit/s Base FX ports LC connectors

SDW-532-SM-LC40

Industrial Ethernet 5-port Switch
3 x 10/100 Mbit/s Base T ports
2 x 100 Mbit/s Base FX ports LC connectors

SDW-532-SM-SC15

Industrial Ethernet 5-port Switch
3 x 10/100 Mbit/s Base T ports
2 x 100 Mbit/s Base FX ports SC connectors

SDW-541-F1G-T4G

Industrial Ethernet 5-port Gigabit Switch
4 x 100 Mbit/s Base T or 1 Gbit/s ports
1x SFP, 100 Mbit/s or 1 Gbit/s, transceivers LC connectors

SDW-541-MM-LC2

Industrial Ethernet 5-port Switch
4 x 10/100 Mbit/s Base T ports
1 x 100 Mbit/s Base FX ports LC connectors

SDW-541-MM-SC2

Industrial Ethernet 5-port Switch
4 x 10/100 Mbit/s Base T ports
1 x 100 Mbit/s Base FX ports SC connectors

SDW-541-SM-LC15

Industrial Ethernet 5-port Switch
4 x 10 Mbit/s or 100 Mbit/s Base T ports
1 x 100 Mbit/s Base FX ports LC connectors

SDW-541-SM-SC15

Industrial Ethernet 5-port Switch
4 x 10/100 Mbit/s Base T ports
1 x 100 Mbit/s Base FX ports SC connectors

SDW-550

Industrial Ethernet 5-port Switch
5 x 10/100 Mbit/s Base T ports

SDW-550 E-mark

Industrial Ethernet 5-port Switch
5 x 10/100 Mbit/s Base T ports

SDW-550-T5G

Industrial Ethernet 5-port Gigabit Switch
5 x 10/100/1000 Mbit/s ports

1 Gbit Fibre Optic Transceivers

Singlemode SFP Transceivers
10, 30, 50, 80 and 110 km range variants
Operating temperature: -40 to +85°C

Gigabit-Transceiver

2.5 Gbit Fibre Optic Transceivers

Singlemode SFP Transceivers
20, 40 and 80 km range variants
Operating temperature: -40 to +85°C

10 Gbit Fibre Optic Transceivers

Singlemode SFP Transceivers
10, 40 and 80 km range variants
Operating temperature: -40 to +85°C

RedFox, Lynx Serien und ODW-700 Serie

100 Mbit Transceiver

TX100 and GTX100 Copper Transceivers

10/100 Mbit/s or 10/100/1000 Mbit/s SFPs with auto-negotiation
Operating temperature: -40 to +85°C

10 Gbit, 2.5 Gbit, 1 Gbit and Fast Ethernet Fibre Optic Transceivers

Multimode SFP Transceivers
Operating temperature: -40 to +85°C

TD-23 LV

Multidrop modem
1 x Leased line 300 bit/s to 1200 bit/s
1 x RS-232 300 bit/s to 1200 bit/s
1 x RS-422/485 300 bit/s to 1200 bit/s

TD-23 LV with relay

Multidrop modem
1 x Leased line 300 bit/s to 1200 bit/s
1 x RS-232 300 bit/s to 1200 bit/s
1 x RS-422/485 300 bit/s to 1200 bit/s

USB-M12

EN 50155 Configuration Backup Device
USB v1.1 M12 A-coded male

Viper-002-PL

EN 50155 Ethernet Powerline Bridge
1 x 100 Mbps Ethernet port
1 x 2-wire cable port

Viper-108-T8G

Managed Gigabit Switch
8 x1 Gbps ports
1 x USB
1 x RS-232 console port

Viper-112A

EN 50155 Managed Switch
12 x 100 Mbps ports
1 x USB
1 x RS-232 console port

Viper-112A-P8-HV

EN 50155 Managed PoE Switch - high voltage version
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-112A-P8-LV

EN 50155 Managed PoE Switch - low voltage version
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-112A-T3G

EN 50155 Managed Gbps Switch
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
1 x RS-232 console port

Viper-112A-T3G-P8-HV

EN 50155 Managed Gbps PoE Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-112A-T3G-P8-LV

EN 50155 Managed Gbps PoE Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-112A-T5G

EN 50155 Managed Gbps Switch
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port

Viper-112A-T5G-P8-HV

EN 50155 Managed Gbps PoE Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port

Viper-112A-T5G-P8-LV

EN 50155 Managed Gbps PoE Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port

Viper-120A

EN 50155 Managed Switch
20 x 100 Mbps ports
1 x USB
1 x RS-232 console port

Viper-120A-P8-HV

EN 50155 Managed PoE Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-120A-P8-LV

EN 50155 Managed PoE Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-120A-T4G

EN 50155 Managed Gbps Switch
4 x Gbps ports
16 x 100 Mbps ports
1 x USB
1 x RS-232 console port

Viper-120A-T4G-P8-HV

EN 50155 Managed Gbps PoE Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port

Viper-120A-T4G-P8-LV

EN 50155 Managed Gbps PoE Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port

Viper-208-T4G-TBN

Managed EN 50155 Backbone-Routing-Switch
4 x Gbps ports
4 x 100 Mbps ports
1 x USB
Konsolen-Port
1 x RS-232

Viper-208-T8G

Managed Gigabit Routing Switch
8 x1 Gbps ports
1 x USB
1 x RS-232 console port

Viper-208-T8G-TBN

Managed EN 50155 Backbone-Routing-Switch
8 x Gbps ports
1 x USB
Konsolen-Port
1 x RS-232

Viper-208-T8G-TBN

Managed EN 50155 Backbone-Routing-Switch
8 x Gbps ports
1 x USB
Konsolen-Port
1 x RS-232

Viper-212A

EN 50155 Managed Routing Switch
12 x 100 Mbps ports
1 x USB
1 x RS-232 console port

Viper-212A-P8-HV

EN 50155 Managed PoE Routing Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-212A-P8-LV

EN 50155 Managed PoE Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-212A-T3G

EN 50155 Managed Gbps Routing Switch
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
1 x RS-232 console port

Viper-212A-T3G-P8-HV

EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-212A-T3G-P8-LV

EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-212A-T5G

EN 50155 Managed Gbps Routing Switch
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port

Viper-212A-T5G-P8-HV

EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port

Viper-212A-T5G-P8-LV

EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port

Viper-220A

EN 50155 Managed Routing Switch
20 x 100 Mbps ports
1 x USB
1 x RS-232 console port

Viper-220A-P8-HV

EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-220A-P8-LV

EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

Viper-220A-T4G

EN 50155 Managed Gbps Routing Switch
4 x Gbps ports
16 x 100 Mbps ports
1 x USB
1 x RS-232 console port

Viper-220A-T4G-P8-HV

EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port

Viper-220A-T4G-P8-LV

EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port

Viper-008

Unmanaged EN 50155 Switch
8 x 100 Mbps ports

Viper-012

Unmanaged EN 50155 Switch
12 x 100 Mbps ports
