Industrial Cellular Routers

Secure wireless routing for industrial remote access

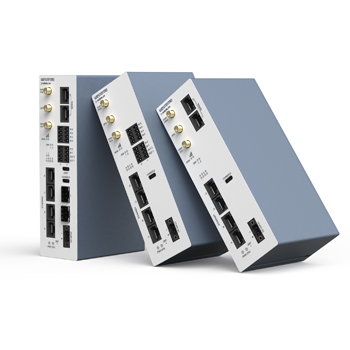

Industrial Cellular Routers 4G LTE by Westermo.

The Westermo range of industrial wireless cellular routers provides resilient remote access and eliminates the need for costly site visits. Whether you’re using a 5G, 4G LTE, 3G or 2G connection, Westermo have a solution. With support for secure VPN communications, static and dynamic IP routing, NAT, port forwarding, OpenVPN (SSL VPN), and a stateful packet inspection firewall, Westermo's industrial cellular routers provide secure and reliable communications.

(Showing all products)

Westermo Cybox

CyBox GW 2-P

EN 50155 Mobile Wireless 5G Gateway
3 x 3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4 x SIM card slots for each 5G interface
2 x 1 Gbps ports, M12 connectors
Up to 2 x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC

Westermo Cybox

CyBox GW-P

EN 50155 Mobile Wireless LTE Gateway
3 x 3 MIMO
11 x or 13 x QLS connectors
Up to 5 x LTE CAT-7
1 GNSS
4 x SIM card slots for each LTE interface
2 x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC

Railway LTE Router CyBox LTE 2-W by Westermo

CyBox LTE 2-W

EN 50155 LTE and Wi-Fi Router
3 x 3 MIMO LTE CAT-7
5 x or 6 x QLS or 3 x SMA antenna connectors
2 x 1 Gbps ports, M12 connectors
4 x SIM card slots
1 GNSS
PoE+
Power feed 24 to 110 VDC

Westermo Cybox, front

CyBox RT 2-A

Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
E1 compliant
3 x 3 MIMO
11 x QLS antenna connectors
5 x 1 Gb ETH, RJ-45 ports
1 GNSS
Power feed 12 to 24 VDC

Westermo cybox

CyBox RT 3-W

EN 50155 5G and Wi-Fi 5 Router
4 x 4 MIMO
9 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
4 x SIM card slots
1 GNSS
PoE+
Power feed 24 to 110 VDC

GW1042W-X-QFR

Rugged Compact 4G/LTE Router with optional Wi-Fi
2 x 10/100 Mbit/s, RJ-45
2 x SIM card slot
2 x SMA female Wi-Fi antenna connector (optional)

Ibex-RT-330

EN 50155 LTE Router and Mobile Communication Gateway
2 x 2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

Picture of a Westermo Ibex-RT-330-5G

Ibex-RT-330-5G

EN 50155 5G Router
4 x 4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV 24 VDC or PoE

Ibex-RT-630

EN 50155 LTE and WLAN Router
2 x 2 MIMO LTE-A Cat-12
3 x 3 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

Picture of a Westermo Ibex-RT-630-5G

Ibex-RT-630-5G

EN 50155 5G and WLAN Router
4 x 4 MIMO 5G 3GPP Rel 16
2 x 2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE

Picture of merlin-3100, default left

Merlin-3103-T2G-PFN-(PFT)-DCi0936

450 MHz Cellular Router for Private LTE Networks
Band 31 and 72
Trusted Platform Module
2 x 10/100/1000 Mbit/s, Ethernet TX, RJ45
2 x Mini SIM card slot
2 x SMA compatible connectors

Picture of merlin-3100-5G, default left

Merlin-3103-T2G-PFO-DCi0936

Compact 5G Cellular Router
Trusted Platform Module
GPS, GLONASS, BeiDou, Galileo
2 x 10/100/1000 Mbit/s, Ethernet TX, RJ45
2 x Mini SIM card slot
4 x SMA compatible connectors - 5G

Merlin-3103-T2G-QFR-G-DCi0936

Compact LTE Cat-4 Cellular Router
Trusted Platform Module
GPS, GLONASS, BeiDou, Galileo
2 x 10/100/1000 Mbit/s, Ethernet TX, RJ45
2 x Mini SIM card slot
3 x SMA compatible connectors - 4G

Image of a Merlin

Merlin-4106-T4-S1-DI1

Industrial Cellular Router
LTE Cat-4
Trusted Platform Module
Secure Boot
9.6 - 60 V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS-232 or Digital Input

Image of a Merlin

Merlin-4106-T4-S1-DI1-QFT

Industrial Cellular Router
LTE Cat-M1/NB-IoT
Trusted Platform Module
Secure Boot
9.6 - 60 V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS-232 or Digital Input

Merlin-4407-T4-S2-LV

Industrial 4G LTE Cellular Router
Trusted Platform Module
Secure Boot
Isolated power input 9.6 V - 60 V DC
4 x 10/100 Mbit/s Ethernet, RJ-45
2 x Serial ports RS-232/RS-485
2 x Mini SIM slot
1 x GNSS SMA female antenna connector

Merlin-4609-F2G-T4-S2-DI6-DO2-LV

Industrial IEC 61850-3 Cellular Router
LTE Cat-4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
2 x 1000 Mbit/s SFP
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45
1 x GPS SMA female antenna connector

Merlin-4708-V-T4G-S2-DI6-DO2-LV-QFR

Industrial VDSL LTE Cellular Router
LTE Cat-4
Trusted Platform Module
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ-11
4 x GbE RJ-45
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45

Merlin-4758-V-T4G-S2-DI6-DO2-LV-PFO

Industrial VDSL 5G Cellular Router
Trusted Platform Module keeps cryptographic keys secure
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ-11
4 x GbE RJ-45
6 x Digital input
4 x SMA compatible connectors
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45
