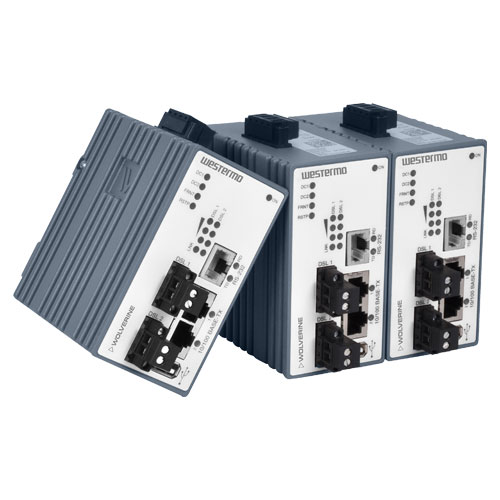

The Westermo Wolverine series of industrial Ethernet extenders allow cost-effective Ethernet networks to be created over long distances, at high data rates. The SHDSL technology employed makes it possible to reuse many types of pre-existing cabling which in turn can lead to considerable financial savings. With support for multidrop networks, redundant rings, legacy serial connections and layer 3 routing functions, our range of Ethernet extenders can meet any demand your application requires.
Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
Industrial Ethernet Extender with 12VDC support
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
Industrial Ethernet Extender with bypass relay
2 x RJ-45, 10 Mbit/s, 100 Mbit/s, manual or auto
2 x 2-position detachable screw terminal
1 x RJ-45, 300 bit/s – 115.2 kbit/s
Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x 4-position detachable screw terminal for RS-422/485 port
Advanced Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
Advanced Industrial Ethernet Extender with 12VDC support
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
Advanced Industrial Ethernet Extender with bypass relay
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
Advanced Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x 4-position detachable screw terminal for RS-422/485 ports
