Merenkulku ja offshore

Robustit Ethernet-ratkaisut meriteollisuudelle

Modernit merenkulun ratkaisut ovat yhä enenevässä määrin automatisoituja. Jotta ne voidaan varustaa keskitetyllä valvonnalla ja ohjauksella, on tärkeää voida kerätä tietoa aluksista, jotka käyttävät useita alijärjestelmiä. Tänä päivänä Ethernet-tietoverkosta on tullut teollisuuden normi, joka tarjoaa selkeät ja toimintavarmat tietoverkkoyhteydet.

Westermolla on laaja valikoima Ethernet-kytkimiä, jotka on hyväksytty merenkulun käyttöön. Kaikki nämä tuotteet on täysin testattu ja sertifioitu DNV:n (Det Norske Veritas) toimesta, jolloin niitä voidaan käyttää useassa laivateollisuuden järjestelmässä, kuten käyttövoima, dynaaminen asemointi, bridge control, hälytysten hallinta ja havainnointijärjestelmissä.

Secure ship-wide Ethernet solutions

The Lynx and Redfox switches are powered by the Westermo WeOS operating system. This can provide some revolutionary networking capabilities. With more and more subsystems relying on Ethernet connectivity, there will be more need to connect subsystem networks. Despite the obvious advantages of sharing networking resources, care should be taken to ensure that data from one network does not affect another system. If, for instance, IP cameras are used on a network to provide visual monitoring of unmanned areas, large amounts of data from cameras can flood the network and inhibit the function of other systems. By using VLANs or IGMP snooping, this data can be controlled or totally segregated. Westermo’s port based firewall solution can also be employed to create secure zones and ensure only the required information passes between different subsystems.

Many ships nowadays have satellite based broadband systems that can allow remote connectivity. By using the remote access VPN capability of the Lynx and Redfox, a secure connection can be made via the ship board network directly to a ship subsystem providing the propulsion manufacturer, for instance, the ability to monitor performance remotely or offer instant support in the event of a system problem.

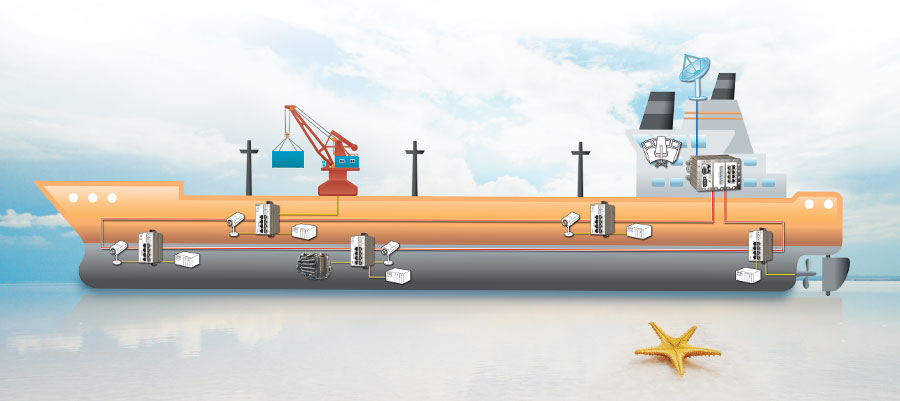

Westermo products on a ship

No interference to other electronics

Did you know the DNV approval for the Lynx allows the switch within 5cm of the ships compass?

The Lynx has the best DNV approval in class. The magnetic field around the Lynx is so small it can be mounted withing 5cm of the compass. Most other devices in the same class are not permitted to be mounted any closer than 20cm. It would be unusual to find a Lynx so close to a ship's magnetic compass. However, the very small magnetic field means the Lynx can be installed safely in locations where magnetic fields will influence delicate electronic equipment.

Mikael Lindahl

Network application specialist
