EN50155 Konfiguraatio Backup -USB

USB-M12

Ominaisuudet

Ultra robust USB backup and maintenance device

• Compatible with the Viper-112/212 ranges and RFR-212-FB
• Metal housing
• WeOS compatible automatic backup and restore

Externally tested and verified to EN 50155

• Surge resistance and isolation
• Magnetic field immunity & conducted emission
• Shock and vibration

Designed for extreme operational environments

• IP67
• M12 connection
• Ambient temperature –40°C (–40°F) to +70°C (+158°F)

Design and production testing to match requirements for train control

• MTBF 7 014 000 h
• Post production testing exceeding EN 50155 mandatory requirements
• Burn in on all units
• Manufactured according to IPC-A-610D Class2

Yhteenveto

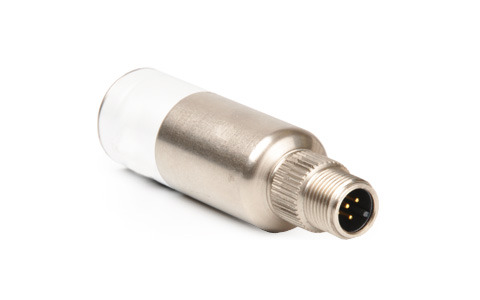

The USB-M12 is a configuration backup device designed to meet the full requirements of the rail vehicle market. This device can be used with the Viper-112/212 ranges and RFR-212-FB, and allows the configuration of the switch to be saved.

The device can then be left attached to the switch for easy maintenance exchange of units. It also enables easy update of the switch configuration by attaching the device to the switch and cycling power.

As is critical for all equipment to be installed in rail vehicles, this device has been externally tested across the complete spectrum of standards required by EN 50155. Westermo understand that systems on railcars are required by the EN 50155 standard to have a useful life of 20 years, so we use the highest quality components to deliver extended MTBF figures.

The EN 50155 standard requires mandatory performance and isolation testing. Not only does Westermo meet these, we exceed them in order to meet the additional manufacturer requirements for train control. Westermo’s Swedish factory has been building Ethernet switches for the railcar market for many years and understands the measures that are required to provide the highest quality manufactured solutions.

Lue lisää

Tekniset tiedot

EN 50155 Configuration Backup Device
USB v1.1 M12 A-coded male
