Consumers require a continuous, reliable supply of electricity, and the need to monitor an increasingly complex grid is growing. In recent years, solar cells have become very common as a means for consumers to produce their own electricity. Any electricity surplus can be sent back to the grid and sold to other consumers. This requires the ability to monitor and control the very edge of the electricity grid. Only a few secondary substations today are connected to a control center, but having communication with primary substations alone cannot guarantee quality of service. With electricity companies having perhaps more than 100,000 secondary substations to manage from a single control centre, maintenance is usually reactive, making it harder to maintain the quality of energy supply. Considering the high number of devices to be installed, ease of configuration and maintenance is essential to ensure these projects are viable. These secondary substations can be spread over large geographical areas, without any supervision, but all connections must be secure against cyberattacks.

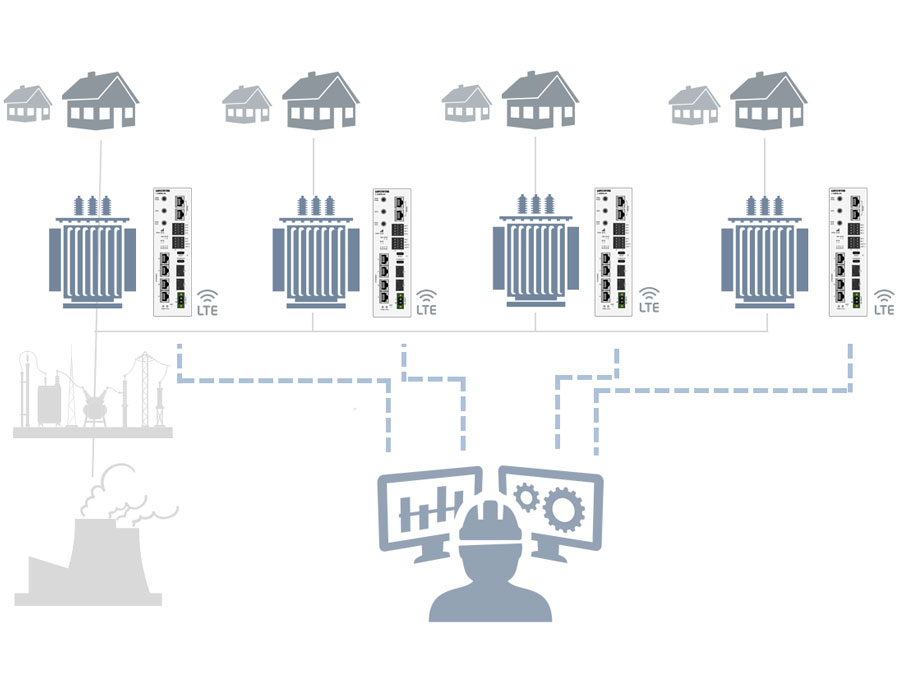

Westermo uses cellular communication to enable customers to reach secondary substations from their control centres, having the most robust and reliable cellular routers on the market. Reliable remote access can help you to reduce the number of minutes of lost supply and the number of customer interruptions. The Merlin industrial cellular routers and Lynx switches offer the highest mean time between failures (MTBF) on the market, and its dual-SIM feature provides a redundant connection to control centres.
Coupled with the Zero Touch deployment software Activator, it provides cost-effective, reliable, and consistent onboarding of routers in large-scale projects. To achieve best-in-class cybersecurity, the Merlin series is equipped with features such as Secure Boot, Trusted Platform Module, IPSec encryption and stateful firewall.
Compact and robust wireless cellular routers for secondary substation connectivity.
Westermo's industrial managed layer 3 Ethernet switches are rugged industrial switches, routers and firewall in one box.
Activator is a telco-grade, automated provisioning and monitoring system designed to simplify the logistic issues associated with deploying and managing thousands of routers. Activator can be a cloud-based or a privately installed server.
Monitor is a secure portal built in to Activator that provides your support team with access to router availability, real-time diagnostics, and dashboard reporting. Routers that are created as devices on Activator are automatically created on Monitor. Together, Activator and Monitor provide a highly scalable management solution that grows with your service.
This whitepaper offers actionable insights and practical guidance for industries relying on OT networks, helping you harness the full potential of eUICC and eSIMs to drive operational efficiency.
Get your free copyActivator is a automated provisioning and monitoring system designed to simplify the logistic issues associated with deploying and managing thousands of routers. This short video will show how it works.
Rugged Compact 4G/LTE Router with optional WiFi
2 x 10/100 Mbit/s, RJ-45
2 x SIM card slot
2 x SMA female WiFi antenna connector (optional)
Industrial PoE+ LTE Router
4 x 100/1000 Mbit/s, PoE+, RJ-45
2 x Digital input
2 x Relay contact output
2 x Micro SIM card slot
1 x GPS SMA female antenna connector
Industrial Cellular Router
LTE Cat 4
Trusted Platform Module
Secure Boot
9.6 - 60V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS232 or Digital Input
Industrial Cellular Router
LTE Cat-M1/NB-IoT
Trusted Platform Module
Secure Boot
9.6 - 60V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS232 or Digital Input
Industrial 4G LTE Cellular Router
Trusted Platform Module
Secure Boot
Isolated power input 9.6V - 60V DC
4 x 10/100 Mbit/s Ethernet, RJ45
2 x Serial ports RS-232/RS485
2 x Mini SIM slot
1 x GNSS SMA female antenna connector
Industrial IEC 61850-3 Cellular Router
LTE Cat 4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
2 x 1000 Mbit/s SFP
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
1 x GPS SMA female antenna connector
Industrial VDSL LTE Cellular Router
LTE Cat 4
Trusted Platform Module
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ11
4 x GbE RJ-45
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
Industrial 4G Router
2 x 10/100 Mbit/s, RJ-45
1 x RS-232 port, 300 bit/s – 115.2 kbit/s
1 x SIM slot
Industrial 4G LTE Cellular Router - EMEA/APAC version
2 x 10/100 Mbit/s, RJ-45
1 x RS-232 port, 300 bit/s – 115.2 kbit/s
2 x Mini-SIM slots
Westermo solutions provide data networks of the future, ensuring a smooth transition into a new era of energy supply.
Extremely robust and scalable data communication solutions that ensure you get the most out of your renewable energy systems.
Cost-efficient and scalable network solution to remotely connect to your primary substations.
Resilient networks for substation automation including environments with extreme electromagnetic interference levels.
Reliable data communication solutions for smart grid applications. Simple configuration and large-scale deployment.
