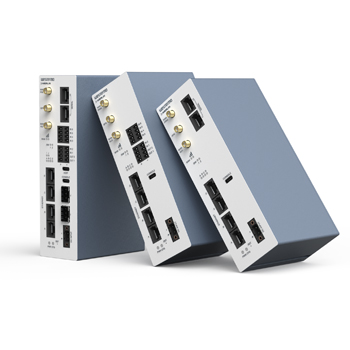

Industrial Cellular Routers
Secure wireless routing for industrial remote access
The Westermo range of industrial wireless cellular routers provides resilient remote access and eliminates the need for costly site visits. Whether you’re using a 5G, 4G LTE, 3G or 2G connection, Westermo have a solution. With support for secure VPN communications, static and dynamic IP routing, NAT, port forwarding, OpenVPN (SSL VPN), and a stateful packet inspection firewall, Westermo's industrial cellular routers provide secure and reliable communications.

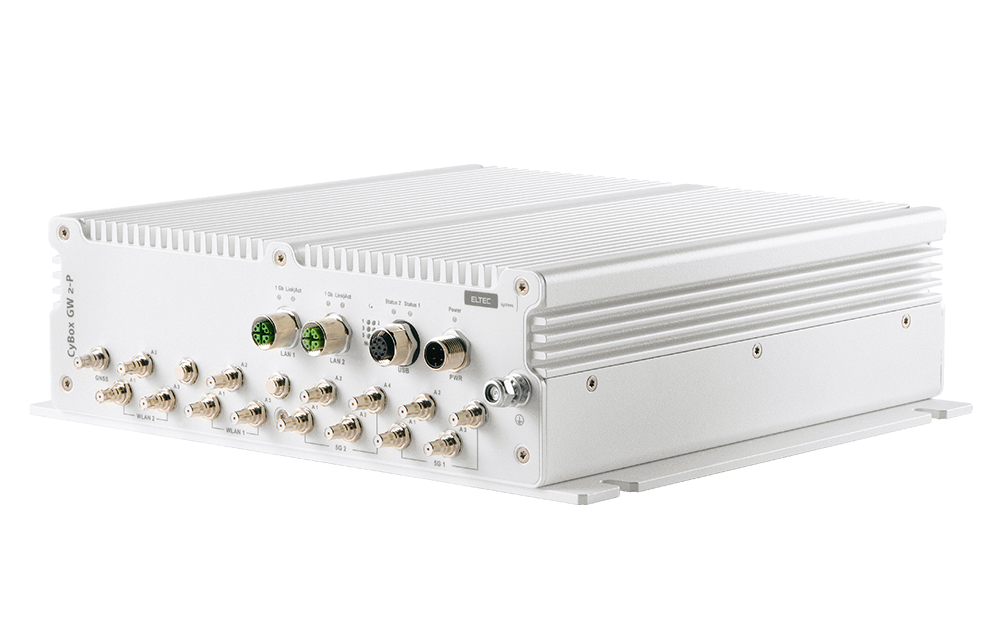

CyBox GW 2-P
EN 50155 Mobile Wireless 5G Gateway
3 x 3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4 x SIM card slots for each 5G interface
2 x 1 Gbps ports, M12 connectors
Up to 2 x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC

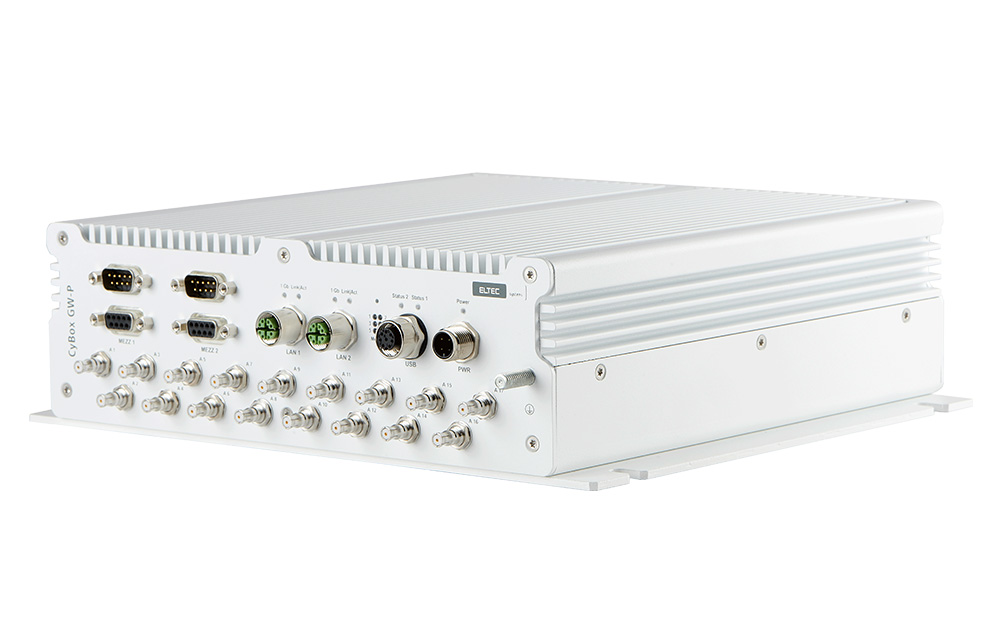

CyBox GW-P
EN 50155 Mobile Wireless LTE Gateway
3 x 3 MIMO
11 x or 13 x QLS connectors
Up to 5 x LTE CAT-7
1 GNSS
4 x SIM card slots for each LTE interface
2 x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC

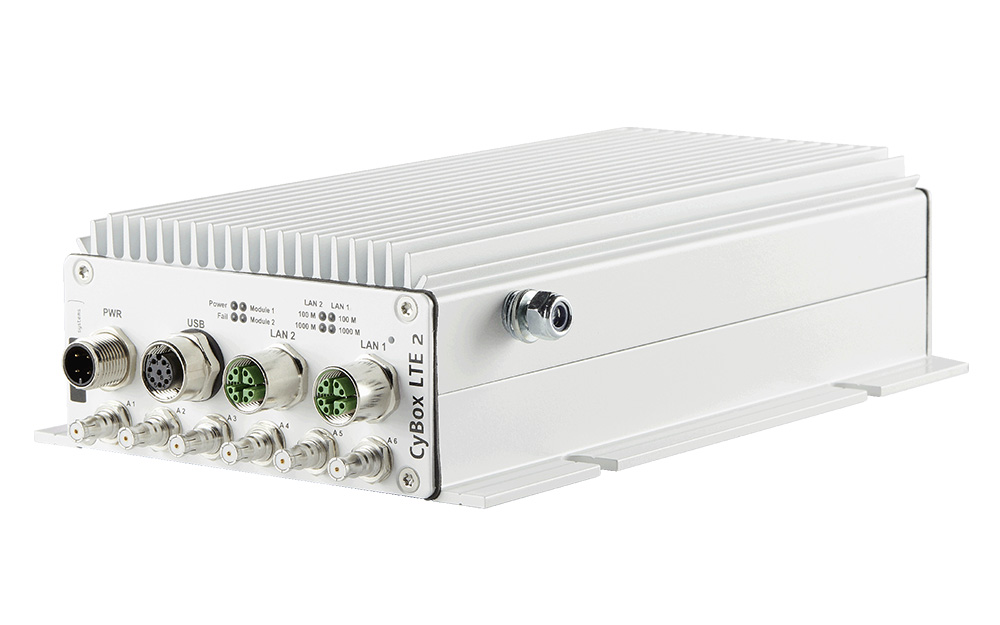

CyBox LTE 2-W
EN 50155 LTE and Wi-Fi Router
3 x 3 MIMO LTE CAT-7
5 x or 6 x QLS or 3 x SMA antenna connectors
2 x 1 Gbps ports, M12 connectors
4 x SIM card slots
1 GNSS
PoE+
Power feed 24 to 110 VDC

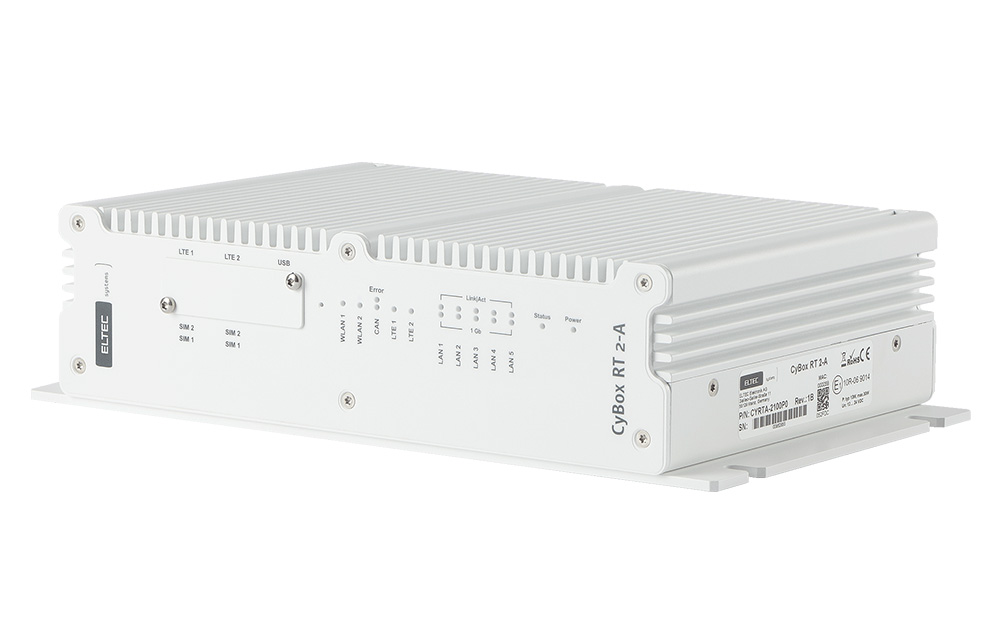

CyBox RT 2-A
Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
E1 compliant
3 x 3 MIMO
11 x QLS antenna connectors
5 x 1 Gb ETH, RJ-45 ports
1 GNSS
Power feed 12 to 24 VDC

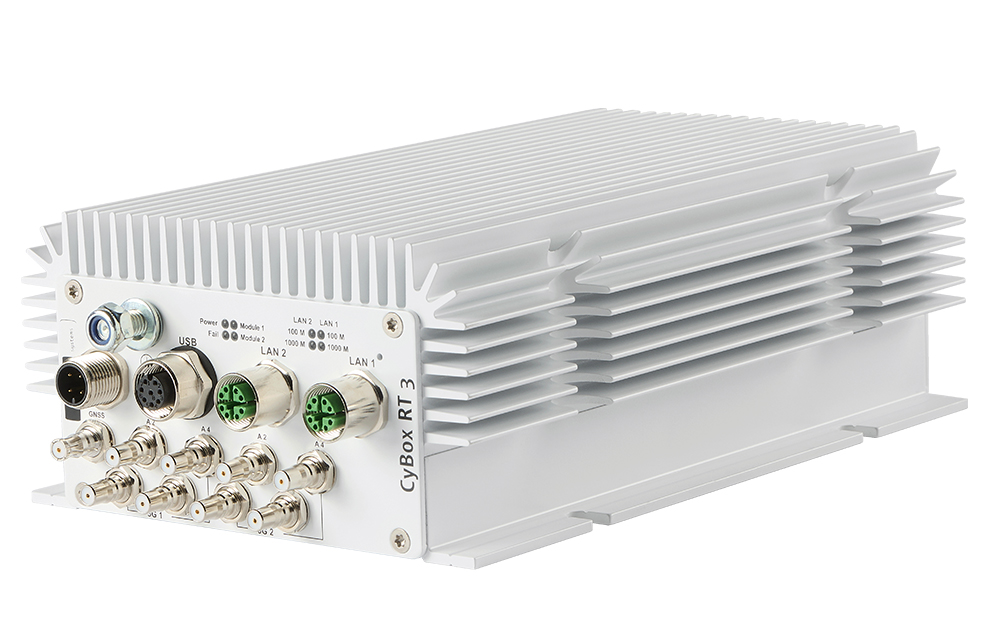

CyBox RT 3-W
EN 50155 5G and Wi-Fi 5 Router
4 x 4 MIMO
9 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
4 x SIM card slots
1 GNSS
PoE+
Power feed 24 to 110 VDC

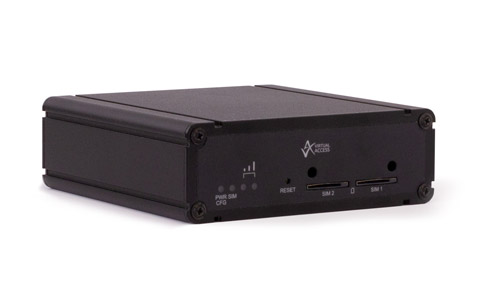

GW1042W-X-QFR
Rugged Compact 4G/LTE Router with optional Wi-Fi
2 x 10/100 Mbit/s, RJ-45
2 x SIM card slot
2 x SMA female Wi-Fi antenna connector (optional)

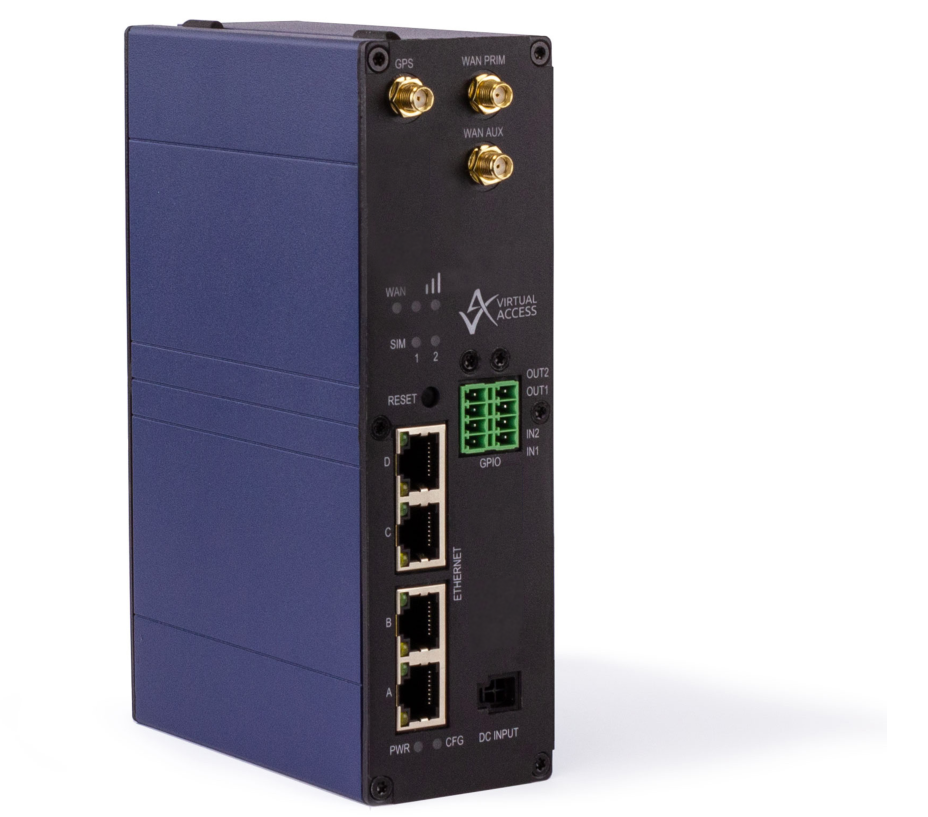

GW2304-PE4-2DI2O-QFR
Industrial PoE+ LTE Router
4 x 100/1000 Mbit/s, PoE+, RJ-45
2 x Digital input
2 x Relay contact output
2 x Micro SIM card slot
1 x GPS SMA female antenna connector
Ibex-4000 Series
Railway WLAN Access Point with Wi-Fi 6(E) Triple Radio
4 x 4 MU-MIMO 2.4 GHz, 5 GHz and 6 GHz
2 x 2.5/10 Gigabit Ethernet ports, M12 connectors
Ethernet bypass relays / antenna combiners
12 x QLS compatible antenna connectors
160 MHz maximum channel bandwidth
Dual PoE+/PoE++ power supply
Power feed 24 to 110 VDC

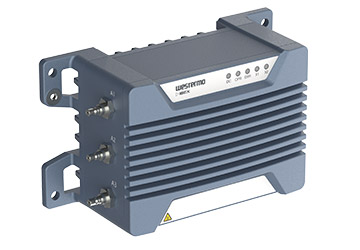

Ibex-RT-330
EN 50155 LTE Router and Mobile Communication Gateway
2 x 2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330-5G
EN 50155 5G Router
4 x 4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV 24 VDC or PoE

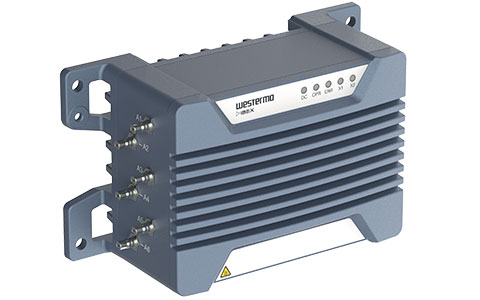

Ibex-RT-630
EN 50155 LTE and WLAN Router
2 x 2 MIMO LTE-A Cat-12
3 x 3 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

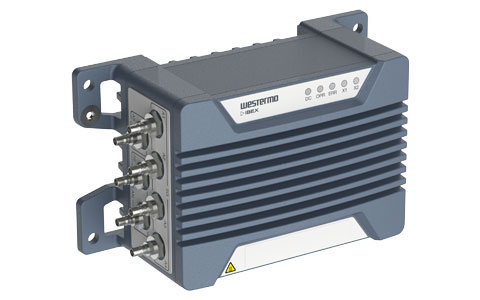

Ibex-RT-630-5G
EN 50155 5G and WLAN Router
4 x 4 MIMO 5G 3GPP Rel 16
2 x 2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE

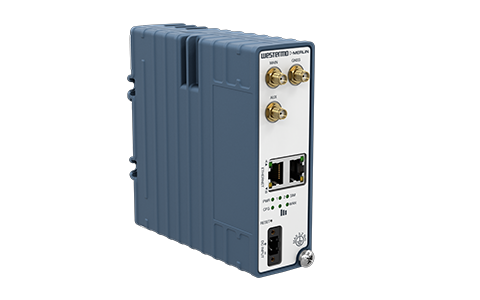

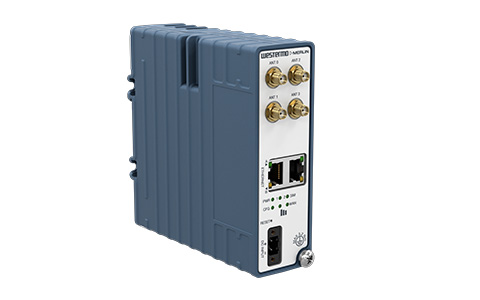

Merlin-3103-T2G-QFR-G-DCi0936
Compact LTE Cat-4 Cellular Router
Trusted Platform Module
GPS, GLONASS, BeiDou, Galileo
2 x 10/100/1000 Mbit/s, Ethernet TX, RJ45
2 x Mini SIM card slot
3 x SMA compatible connectors - 4G

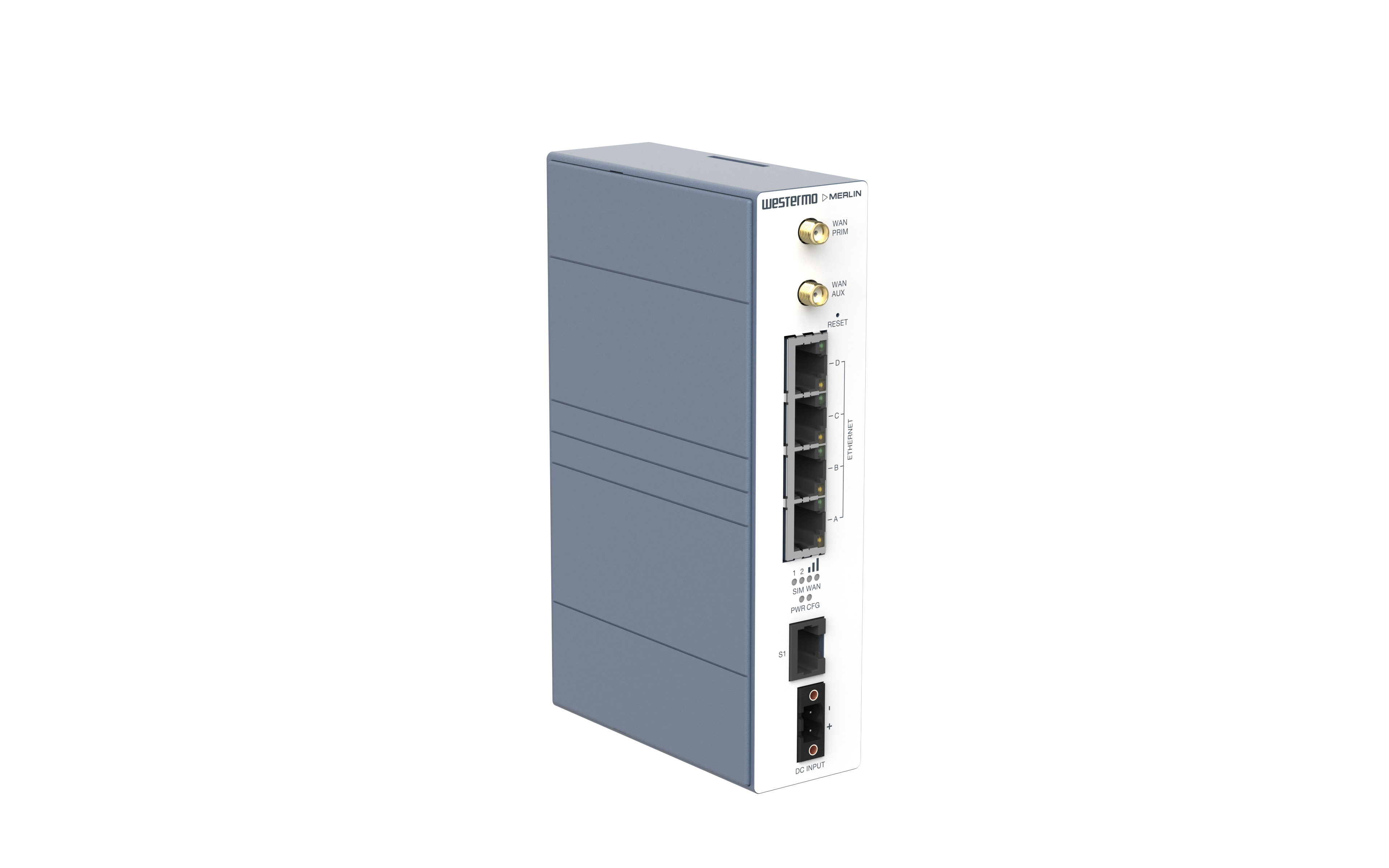

Merlin-4106-T4-S1-DI1
Industrial Cellular Router
LTE Cat-4
Trusted Platform Module
Secure Boot
9.6 - 60 V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS-232 or Digital Input
Merlin-4106-T4-S1-DI1-QFT
Industrial Cellular Router
LTE Cat-M1/NB-IoT
Trusted Platform Module
Secure Boot
9.6 - 60 V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS-232 or Digital Input

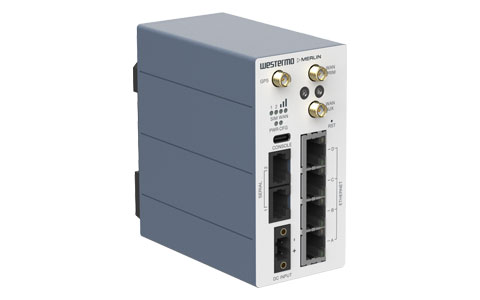

Merlin-4407-T4-S2-LV
Industrial 4G LTE Cellular Router
Trusted Platform Module
Secure Boot
Isolated power input 9.6 V - 60 V DC
4 x 10/100 Mbit/s Ethernet, RJ-45
2 x Serial ports RS-232/RS-485
2 x Mini SIM slot
1 x GNSS SMA female antenna connector

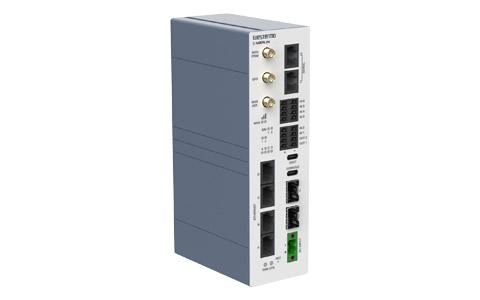

Merlin-4609-F2G-T4-S2-DI6-DO2-LV
Industrial IEC 61850-3 Cellular Router
LTE Cat-4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
2 x 1000 Mbit/s SFP
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45
1 x GPS SMA female antenna connector

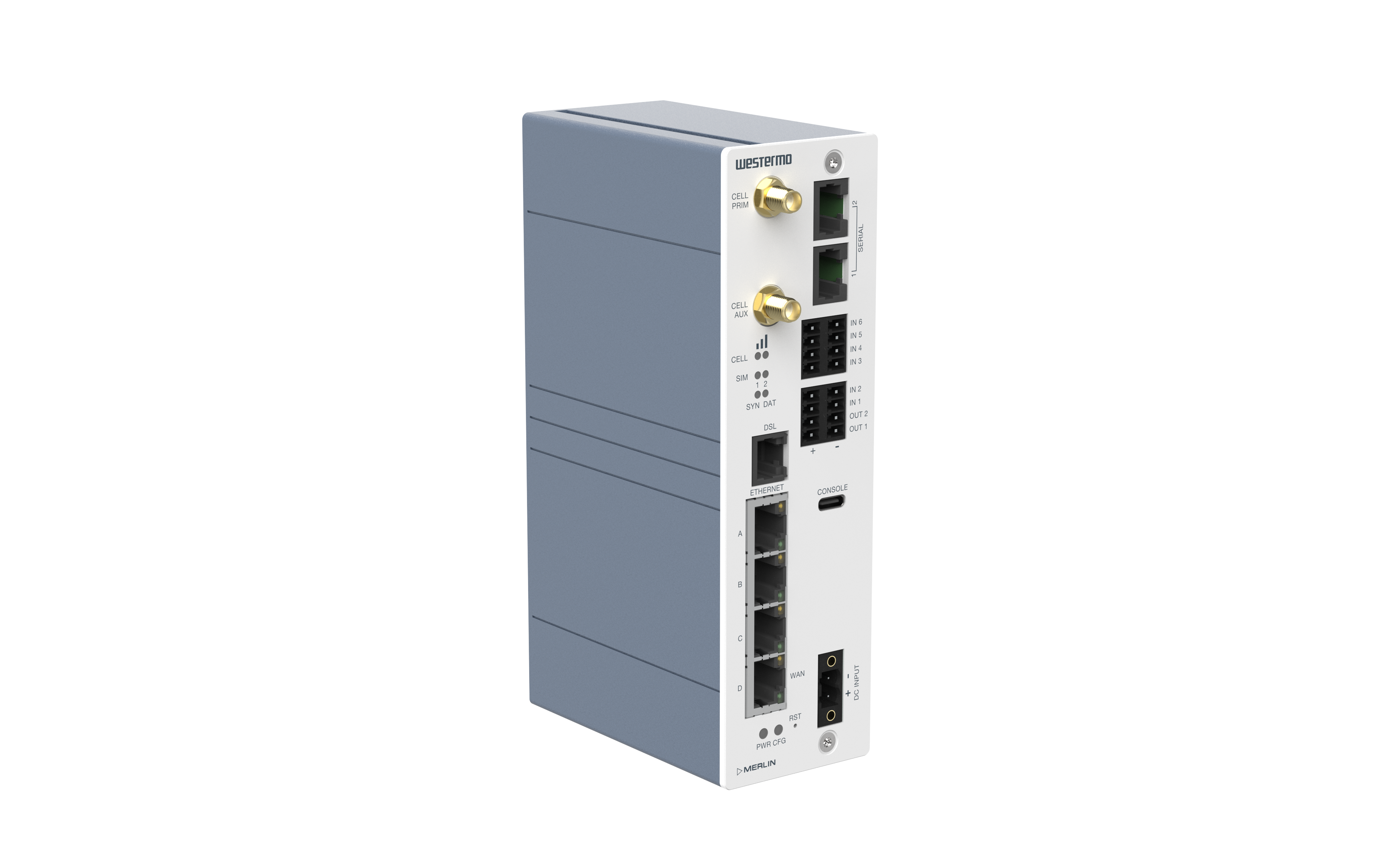

Merlin-4708-V-T4G-S2-DI6-DO2-LV-QFR
Industrial VDSL LTE Cellular Router
LTE Cat-4
Trusted Platform Module
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ-11
4 x GbE RJ-45
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45

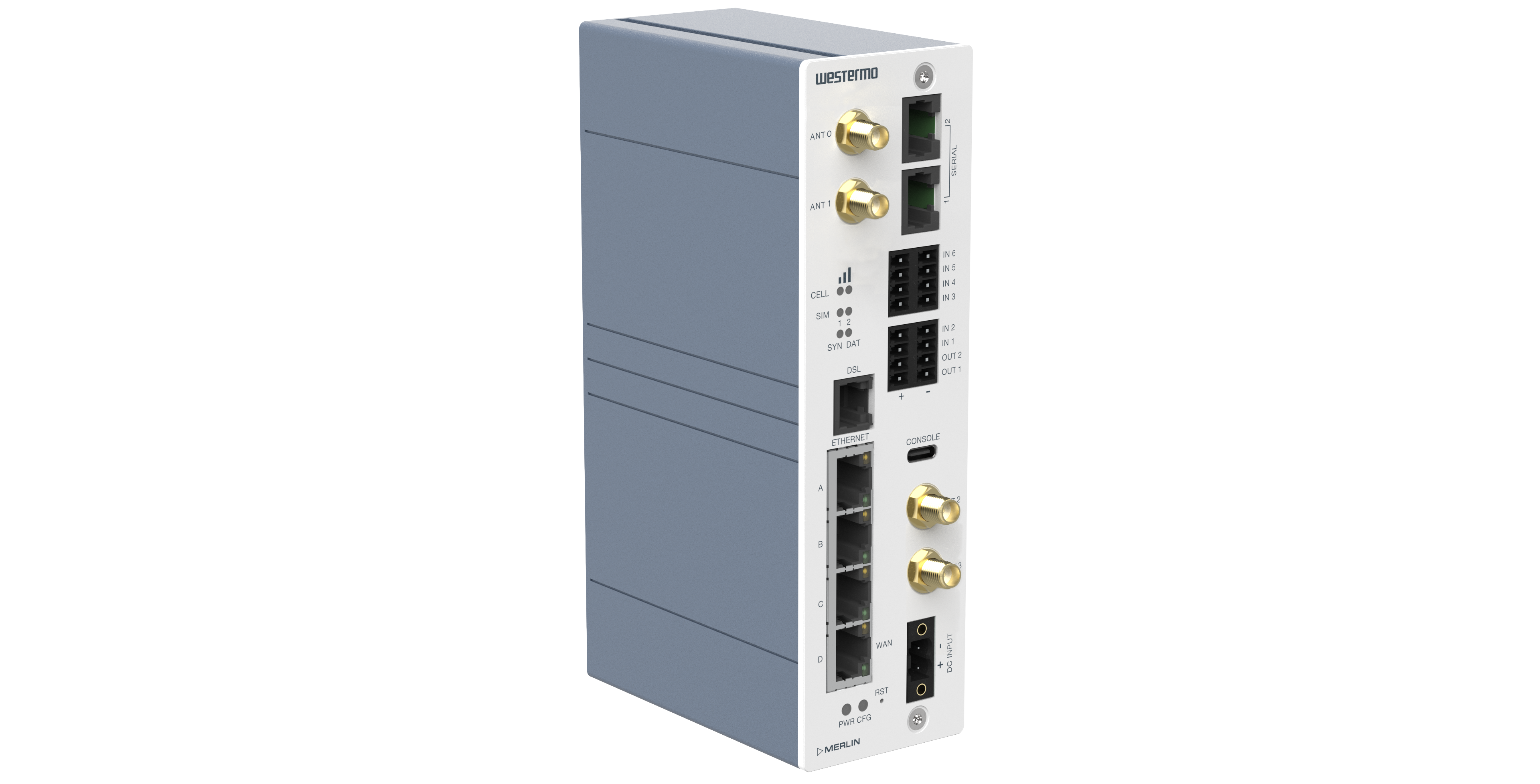

Merlin-4758-V-T4G-S2-DI6-DO2-LV-PFO
Industrial VDSL 5G Cellular Router
Trusted Platform Module keeps cryptographic keys secure
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ-11
4 x GbE RJ-45
6 x Digital input
4 x SMA compatible connectors
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45
Unlock the Power of eUICC eSIMs for OT Connectivity
This whitepaper offers actionable insights and practical guidance for industries relying on OT networks, helping you harness the full potential of eUICC and eSIMs to drive operational efficiency.
