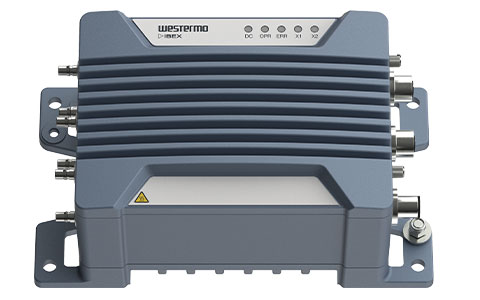

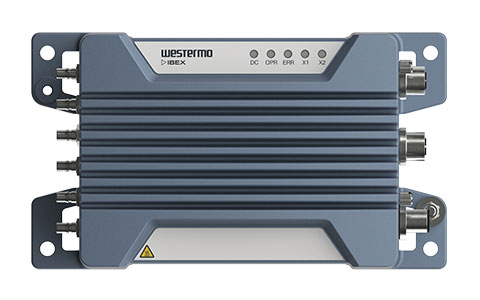

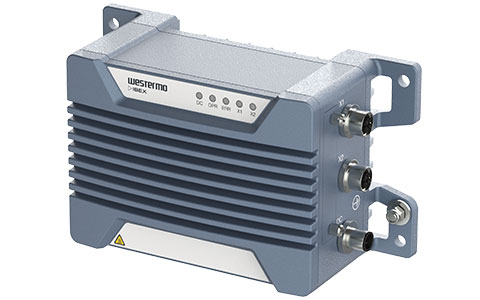

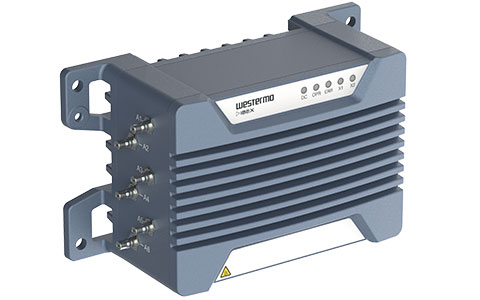

EN 50155 LTE and WLAN Router

Ibex-RT-630

Produktbeskrivning

✔ Mobile broadband Cat12 LTE-A and WLAN router/gateway

• Supports 3 x carrier aggregation and 256QAM
• WLAN interface with access point and roaming client modes
• Mobile Communication Gateway LTE and WLAN

✔ Designed for onboard usage

• EN50155 and EN45545-2 certified
• Compact design with M12 interfaces
• Wide temperature range

✔ High bandwidth supports multiple applications

• Data offloading
• Remote monitoring
• Video surveillance

Sammanfattning

The Ibex-RT-630 is a mobile LTE and WLAN router for onboard usage in trains, trams, locomotives and busses. The Ibex-RT-630 offers outstanding performance and rugged internet connectivity back-up to enable hybrid train-to-ground installations with a single device. The Mobile Communication Gateway (MCG) router is designed to withstand the tough onboard environmental conditions and can be remotely managed using web browser or SNMP management tools. The MCG provides advanced firewall functionalities and high-performance VPN connectivity.

The router exceeds the high requirements for the most bandwidth-demanding applications worldwide and features global LTE bands to support all current, as well as future, frequencies. A compact design enables quick and easy installation into the tight spaces of trains, while configuration and unit replacement is simplified by a SIM card memory for configuration parameters. Dual SIM allow for further performance optimisations and carrier redundancy. IP66-rating and a wide temperature range from -40 °C to +70 °C ensure that the devices can be installed virtually anywhere, without the need of additional protection.

Meeting the requirements of the rail market, the Ibex-RT-630 is very well-suited for any deployment in environmentally challenging environments.

Visa mer

Teknisk specifikation

EN 50155 LTE and WLAN Router
2x2 MIMO LTE-A Cat-12
3x3 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
