Products / Product lines & brands / Lynx Series

Lynx series

Rugged compact switches and device servers for industrial Ethernet

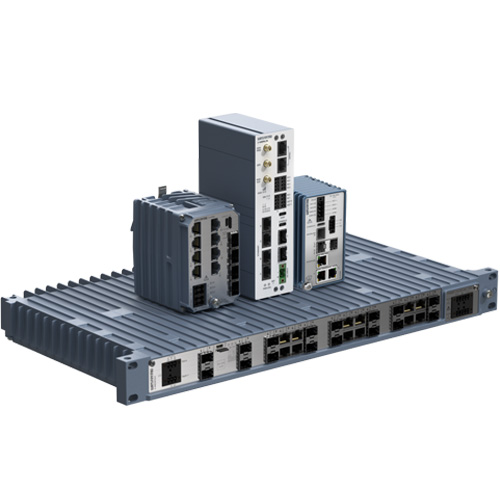

Westermo Substation Automation Ethernet Switches.

The Westermo Lynx range of industrial Ethernet switches are the most compact switches on the market with an impressively low power consumption. Ideal for simple use in complicated industrial applications with their wide operating temperature spectrum, Robust DIN rail housing and long service life. Available in both layer 2 and layer 3 variants, the Lynx switches are powered by Westermo’s own operating system WeOS, simplifying network configuration, maintenance and cyber security. The Lynx range has DNV approval for marine use and meets railway trackside standards.

Westermo L105-S1 device server switch by Westermo.

L105-S1

Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s

 SE PRODUKT
Westermo Lynx Managed Ethernet Switch L106-F2G.

L106-F2G

Managed Ethernet Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

 SE PRODUKT
Westermo Managed Device Server Switch L106-S2.

L106-S2

Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

 SE PRODUKT
Westermo Lynx Managed Device Server Switch L108-F2G-S2.

L108-F2G-S2

Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

 SE PRODUKT
Westermo Lynx L108-F2G-S2-12VDC Managed Device Server Switch.

L108-F2G-S2-12VDC

Managed Device Server Switch - 12 volt version
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

 SE PRODUKT
Westermo Lynx Industrial Managed Ethernet Switch L110-F2G.

L110-F2G

Managed Ethernet Switch
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

 SE PRODUKT
Westermo Lynx Industrial Managed Ethernet Switch L110-F2G.

L110-F2G-12VDC

Managed Ethernet Switch - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

 SE PRODUKT
Westermo Lynx Managed Industrial Device Server Switch with Routing Functionality L205-S1.

L205-S1

Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s

 SE PRODUKT
Westermo Lynx Managed Industrial Ethernet Switch with Routing Functionality L206-F2G.

L206-F2G

Managed Ethernet Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

 SE PRODUKT
Westermo Lynx Managed Industrial Ethernet Switch L206-S2.

L206-S2

Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

 SE PRODUKT
Westermo Lynx Managed Industrial Ethernet Switch L206-F2G-S2.

L208-F2G-S2

Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s,
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

 SE PRODUKT
Westermo Lynx L108-F2G-S2-12VDC Managed Device Server Switch.

L208-F2G-S2-12VDC

Managed Device Server Switch - 12 volt version
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s

 SE PRODUKT
Westermo Lynx Managed Industrial Ethernet Switch L210-F2G.

L210-F2G

Managed Ethernet Switch with Routing Functionality
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

 SE PRODUKT
Westermo Lynx Managed Industrial Ethernet Switch L210-F2G.

L210-F2G-12VDC

Managed Ethernet Switch with Routing Functionality - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

 SE PRODUKT
Picture of a Lynx 3306 Ethernet Switch

Lynx 3306-E-F2G-T4-LV

Industrial Layer 3 Switch
4 x RJ-45, 10/100/BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Picture of a Lynx 3306 Ethernet Switch

Lynx 3306-F2G-T4-LV

Industrial Layer 2 Switch
4 x RJ-45, 10/100/BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Westermo Lynx, left

Lynx 3310-E-F2G-T8-LV

Industrial Layer 3 Switch
8 x RJ-45, 10/100BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Westermo Lynx, left

Lynx 3310-F2G-T8-LV

Industrial Layer 2 Switch
8 x RJ-45, 10/100BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Image of the front angle of lynx 3510, an industrial poe Ethernet switch with DIN-rail mounting

Lynx 3510-E-F2G2.5-P8G-LV

Industrial Layer 3 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C

 SE PRODUKT
Westermo Lynx, left

Lynx 3510-E-F2G2.5-T8G-LV

Industrial Layer 3 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Image of the front angle of lynx 3510, an industrial poe Ethernet switch with DIN-rail mounting

Lynx 3510-E-F2G-P8G-LV

Industrial Layer 3 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C

 SE PRODUKT
Westermo Lynx, left

Lynx 3510-E-F2G-T8G-LV

Industrial Layer 3 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Product Photo, Lynx-3512-F4G-T&G-LV, left perspective
Nyhed

Lynx-3510-F4G-T6G-LV

Industrial Layer 2 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
4 x 1 Gbit/s, Fiber SFP ports
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Product Photo, Lynx-3512-F4G-T&G-LV, left perspective
Nyhed

Lynx-3510-E-F4G-T6G-LV

Industrial Layer 3 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
4 x 1 Gbit/s, Fiber SFP ports
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Product Photo, Lynx-3510-F2G2.5-F2G-T6G-LV, default left perspective
Nyhed

Lynx-3510-F2G2.5-F2G-T6G-LV

Industrial Layer 2 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s + 2 x 1 Gbit/s SFP Fiber ports
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Product Photo, Lynx-3510-F2G2.5-F2G-T6G-LV, default left perspective
Nyhed

Lynx-3510-E-F2G2.5-F2G-T6G-LV

Industrial Layer 3 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s + 2 x 1 Gbit/s SFP Fiber ports
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Image of the front angle of lynx 3510, an industrial poe Ethernet switch with DIN-rail mounting

Lynx 3510-F2G2.5-P8G-LV

Industrial Layer 2 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C

 SE PRODUKT
Westermo Lynx, left

Lynx 3510-F2G2.5-T8G-LV

Industrial Layer 2 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Image of the front angle of lynx 3510, an industrial poe Ethernet switch with DIN-rail mounting

Lynx 3510-F2G-P8G-LV

Industrial Layer 2 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C

 SE PRODUKT
Westermo Lynx, left

Lynx 3510-F2G-T8G-LV

Industrial Layer 2 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C

 SE PRODUKT
Westermo Industrial Gigabit Switch Lynx 5512 front left view.

Lynx 5512-E-F4G-T8G-LV

Industrial Layer 3 Gigabit Switch
8 x RJ-45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)

 SE PRODUKT
Westermo Industrial Gigabit Switch Lynx 5512 front left view.

Lynx 5512-F4G-T8G-LV

Industrial Layer 2 Gigabit Switch
8 x RJ-45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)

 SE PRODUKT
HSR/PRP redundancy box (RedBox) Lynx-RB-FT3G-MV by Westermo.

Lynx-RB-FT3G-MV

IEC 61850-3 Redundancy Box, Layer 2
HSR/PRP seamless redundancy
3x1G combo fiber or copper ports
KEMA approval IEC 61850-3 and IEEE 1613

 SE PRODUKT
Westermo Substation Automation Switch Lynx 5612 left front view.

Lynx 5612-E-F4G-T8G-LV

IEC 61850-3 Substation Automation Switch, Layer 3
8 x RJ-45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)

 SE PRODUKT
Westermo Substation Automation Switch Lynx 5612 left front view.

Lynx 5612-F4G-T8G-LV

IEC 61850-3 Substation Automation Switch, Layer 2
8 x RJ-45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)

 SE PRODUKT
WeOS Network Operating System.

Westermo Operating System – A one box solution

WeOS is one of the few switch operating systems that combines ease of use with routing, cyber security, VPN and sophisticated switch functionality all in one box.

Tell me more
WeConfig Network Configuration Management Tool.

Westermo configuration tool – easy as 1,2,3

The WeConfig network configuration tool provides a seamless user experience that helps with minimising project engineering time as well as in ongoing maintenance throughout the life of the network.
