Viper-3508-E-T4G-T4-TBN
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 3 configurations
4 x 1 Gbps ports
4 x 100 Mbps ports
2 Bypass relays
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-P2G-T1-P6-PPC
EN 50155 Managed Gbps PoE Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configuration
Push-pull M12 connectors
5 x 1 Gbps ports
7 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-T1-P8-PPC
EN 50155 Managed Gbps PoE Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configuration
Push-pull M12 connectors
3 x 1 Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-T9-PPC
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & Layer 3 configurations
Push-pull M12 connectors
3 x 1 Gbps ports
9 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T4-P8-PPC
EN 50155 Managed PoE Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configuration
Push-pull M12 connectors
12 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T5G-T7-PPC
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & Layer 3 configurations
Push-pull M12 connectors
5 x 1 Gbps ports
7 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T12-PPC
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & Layer 3 configurations
Push-pull M12 connectors
12 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T2G-P2G-T10-P6-PPC
EN 50155 Managed PoE Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configuration
Push-pull M12 connectors
4 x 1 Gbps ports
16 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T4G-T16-PPC
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configurations
Push-pull M12 connectors
4 x 1 Gbps ports
16 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T12-P8-PPC
EN 50155 Managed PoE Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configuration
Push-pull M12 connectors
20 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T20-PPC
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configurations
Push-pull M12 connectors
20 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port

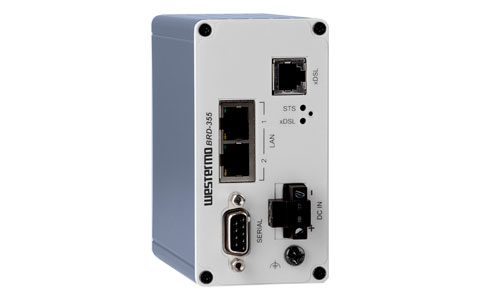

BRD-355A | BRD-355B
Industrial ADSL/VDSL Router
BRD-335A (Annex A)
BRD-355B (Annex B and Annex J)
1 x RS-232, 300 bit/s – 115.2 kbit/s
2 x Ethernet TX, 10 Mbit/s or 100 Mbit/s
1 x DSL, RJ-11
CyBox AP 3-W
Railway WLAN Access Point with Wi-Fi 5 Wave 2 Dual Radio
4 x 4 MU-MIMO
4 x or 8 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
CyBox AP 2-W
Railway WLAN Access Point with Wi-Fi 5 Dual Radio
3 x 3 MIMO
6 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
CyBox GW 2-P
EN 50155 Mobile Wireless 5G Gateway
3 x 3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4 x SIM card slots for each 5G interface
2 x 1 Gbps ports, M12 connectors
Up to 2 x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC
CyBox GW-P
EN 50155 Mobile Wireless LTE Gateway
3 x 3 MIMO
11 x or 13 x QLS connectors
Up to 5 x LTE CAT-7
1 GNSS
4 x SIM card slots for each LTE interface
2 x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC
CyBox RT 3-W
EN 50155 5G and Wi-Fi 5 Router
4 x 4 MIMO
9 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
4 x SIM card slots
1 GNSS
PoE+
Power feed 24 to 110 VDC
CyBox LTE 2-W
EN 50155 LTE and Wi-Fi Router
3 x 3 MIMO LTE CAT-7
5 x or 6 x QLS or 3 x SMA antenna connectors
2 x 1 Gbps ports, M12 connectors
4 x SIM card slots
1 GNSS
PoE+
Power feed 24 to 110 VDC
CyBox RT 2-A
Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
E1 compliant
3 x 3 MIMO
11 x QLS antenna connectors
5 x 1 Gb ETH, RJ-45 ports
1 GNSS
Power feed 12 to 24 VDC
DDW-120
Ethernet SHDSL Extender
1 x 2 positon detachable screw terminal, 192 kbit/s to 15.3 Mbit/s
1 x 2.5 mm jack, 115.2 kbit/s

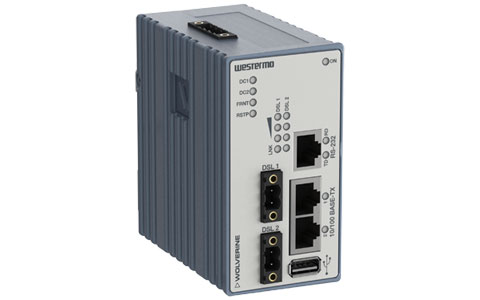

DDW-142
Industrial Ethernet Extender
2 x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2 x 2-position detachable screw terminals for SHDSL ports
1 x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-142-12VDC
Industrial Ethernet Extender with 12 VDC support
2 x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2 x 2-position detachable screw terminals for SHDSL ports
1 x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-142-12VDC-BP
Industrial Ethernet Extender with bypass relay
2 x RJ-45, 10 Mbit/s, 100 Mbit/s, manual or auto
2 x 2-position detachable screw terminal
1 x RJ-45, 300 bit/s – 115.2 kbit/s
DDW-142-485
Industrial Ethernet Extender
2 x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2 x 2-position detachable screw terminals for SHDSL ports
1 x 4-position detachable screw terminal for RS-422/485 port
DDW-242
Advanced Industrial Ethernet Extender
2 x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2 x 2-position detachable screw terminals for SHDSL ports
1 x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-242-12VDC
Advanced Industrial Ethernet Extender with 12 VDC Support
2 x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2 x 2-position detachable screw terminals for SHDSL ports
1 x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-242-12VDC-BP
Advanced Industrial Ethernet Extender with Bypass Relay
2 x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2 x 2-position detachable screw terminals for SHDSL ports
1 x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-242-485
Advanced Industrial Ethernet Extender
2 x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2 x 2-position detachable screw terminals for SHDSL ports
1 x 4-position detachable screw terminal for RS-422/485 ports
EDW-100
Serial Adapter
1 x RS-422/485 4-position detachable screw terminal, 300 bit/s to 115.2 kbit/s
1 x RS-232 9-pin D-sub, 300 bit/s to 115.2 kbit/s
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
EDW-120
Serial Adapter
2 x RS-232 9-pin D-sub, 300 bit/s to 115.2 kbit/s
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
GW1042W-X-QFR
Rugged Compact 4G/LTE Router with optional Wi-Fi
2 x 10/100 Mbit/s, RJ-45
2 x SIM card slot
2 x SMA female Wi-Fi antenna connector (optional)
GW2304-PE4-2DI2O-QFR
Industrial PoE+ LTE Router
4 x 100/1000 Mbit/s, PoE+, RJ-45
2 x Digital input
2 x Relay contact output
2 x Micro SIM card slot
1 x GPS SMA female antenna connector
Ibex-1310
Industrial Outdoor Wi-Fi 6 Access Point
2 x 2 MU-MIMO 5 GHz and 2.4 GHz
2 x N-type connector for Wi-Fi 6 with built-in combiner
2 x 2.5 Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed 12 to 48 VDC or PoE/PoE+

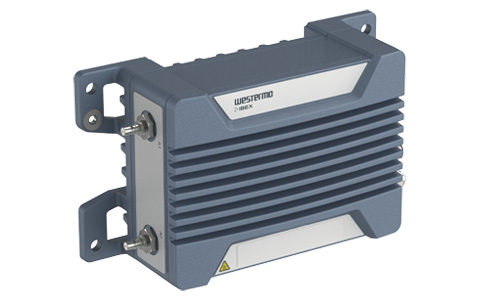

Ibex-1510
EN 50155 Wi-Fi 6 Dual Radio Access Point
2 x 2 MU-MIMO 5 GHz and 2.4 GHz
2 x QMA compatible antenna connectors
with built-in combiner
2 x 2.5 Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed 24 to 110 VDC or PoE/PoE+
Ibex-1520
EN 50155 Wi-Fi 7 Dual-band Radio Access Point
Concurrent 2.4 GHz and 5 GHz GHz
2x2 MU-MIMO
2 x 2.5 Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed 24 to 110 VDC or PoE/PoE+

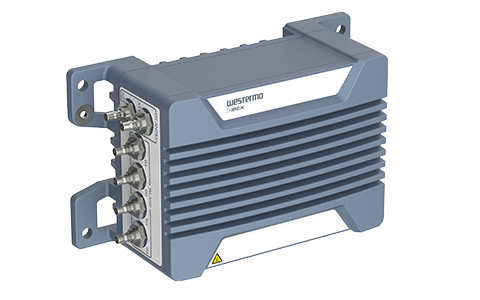

Ibex-3510
EN 50155 Wi-Fi 6E Tri-band Radio Access Point
Concurrent 2.4 GHz, 5 GHz and 6 GHz
6 x QMA compatible antenna connectors
2 x 2.5 Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed 24 to 110 VDC or PoE/PoE+
Ibex-3520
EN 50155 Wi-Fi 7 Tri-band Radio Access Point
Concurrent 2.4 GHz, 5 GHz and 6 GHz
2x2 MU-MIMO
2 x 2.5 Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed 24 to 110 VDC or PoE/PoE+
Ibex-4000 Series
Railway WLAN Access Point with Wi-Fi 6(E) Triple Radio
4 x 4 MU-MIMO 2.4 GHz, 5 GHz and 6 GHz
2 x 2.5/10 Gigabit Ethernet ports, M12 connectors
Ethernet bypass relays / antenna combiners
12 x QLS compatible antenna connectors
160 MHz maximum channel bandwidth
Dual PoE+/PoE++ power supply
Power feed 24 to 110 VDC
Ibex-A2510
Railway WLAN Access Point with Wi-Fi 6 Dual Radio and Integrated Antenna
IEEE 802.11 a/b/g/n/ac/ax
3 x 3 MU-MIMO with 5 GHz or 2.4 GHz per Wi-Fi interface
6 x integrated RF antennas
1 x 1 Gbps port, M12 connector
PoE+

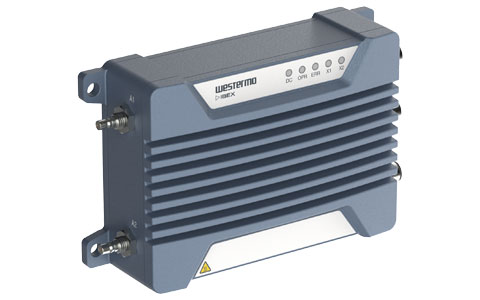

Ibex-RT-220
EN 50155 WLAN Access Point
2 x 2 MIMO
2 x QMA compatible antenna connectors
2 x 100 Mbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-280
Infrastructure WLAN Access Point
2 x 2 MIMO with separated monitoring interface
3 x N-type antenna connectors
2 x 100 Mbps fibre optic ports with ODC-2 connectors
1 x 1 Gbps port, M12 connector
IP66 and -40° - +70°C operating range
Power feed 100 to 240 VAC

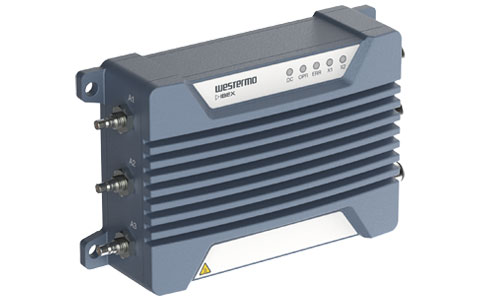

Ibex-RT-320
EN 50155 WLAN Access Point
3 x 3 MIMO
3 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330
EN 50155 LTE Router and Mobile Communication Gateway
2 x 2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330-5G
EN 50155 5G Router
4 x 4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV 24 VDC or PoE

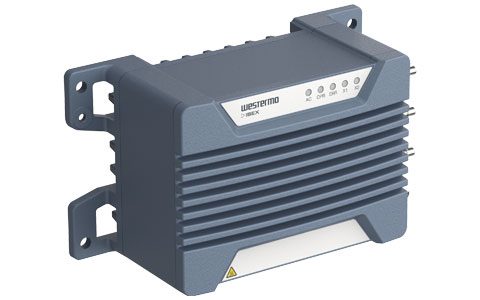

Ibex-RT-370
WLAN Infrastructure Access Point
3 x 3 MIMO
3 x QMA compatible antenna connectors
1 x Gbps port, M12 connector
1 x Gbps fibre optic port, ODC-2 connector
IP66 and -40° - +70°C operating range
Power feed 100 to 240 VAC or PoE

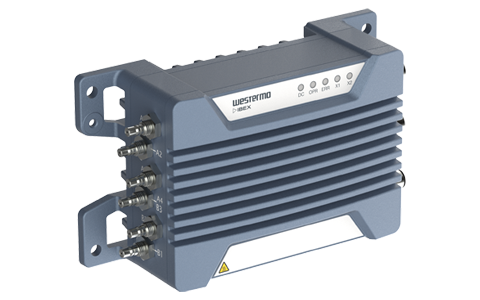

Ibex-RT-610
EN 50155 WLAN Dual Radio Access Point
4 x 4 MU-MIMO 5 GHz
2 x 2 MIMO 2.4 GHz
6 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-630
EN 50155 LTE and WLAN Router
2 x 2 MIMO LTE-A Cat-12
3 x 3 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-630-5G
EN 50155 5G and WLAN Router
4 x 4 MIMO 5G 3GPP Rel 16
2 x 2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
L105-S1
Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
L106-F2G
Managed Ethernet Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L106-S2
Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L108-F2G-S2
Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L108-F2G-S2-12VDC
Managed Device Server Switch - 12 volt version
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L110-F2G
Managed Ethernet Switch
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L110-F2G-12VDC
Managed Ethernet Switch - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L205-S1
Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
L206-F2G
Managed Ethernet Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L206-S2
Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L208-F2G-S2
Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s,
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L208-F2G-S2-12VDC
Managed Device Server Switch - 12 volt version
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L210-F2G
Managed Ethernet Switch with Routing Functionality
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L210-F2G-12VDC
Managed Ethernet Switch with Routing Functionality - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
Lynx 3306-E-F2G-T4-LV
Industrial Layer 3 Switch
4 x RJ-45, 10/100/BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3306-F2G-T4-LV
Industrial Layer 2 Switch
4 x RJ-45, 10/100/BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3310-E-F2G-T8-LV
Industrial Layer 3 Switch
8 x RJ-45, 10/100BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3310-F2G-T8-LV
Industrial Layer 2 Switch
8 x RJ-45, 10/100BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-E-F2G2.5-P8G-LV
Industrial Layer 3 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C
Lynx 3510-E-F2G2.5-T8G-LV
Industrial Layer 3 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-E-F2G-P8G-LV
Industrial Layer 3 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C
Lynx 3510-E-F2G-T8G-LV
Industrial Layer 3 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx-3510-F4G-T6G-LV
Industrial Layer 2 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
4 x 1 Gbit/s, Fiber SFP ports
12 to 48 VDC
-40 to +70°C
Lynx-3510-E-F4G-T6G-LV
Industrial Layer 3 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
4 x 1 Gbit/s, Fiber SFP ports
12 to 48 VDC
-40 to +70°C
Lynx-3510-F2G2.5-F2G-T6G-LV
Industrial Layer 2 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s + 2 x 1 Gbit/s SFP Fiber ports
12 to 48 VDC
-40 to +70°C
Lynx-3510-E-F2G2.5-F2G-T6G-LV
Industrial Layer 3 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s + 2 x 1 Gbit/s SFP Fiber ports
12 to 48 VDC
-40 to +70°C
Lynx 3510-F2G2.5-P8G-LV
Industrial Layer 2 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C
Lynx 3510-F2G2.5-T8G-LV
Industrial Layer 2 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-F2G-P8G-LV
Industrial Layer 2 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C
Lynx 3510-F2G-T8G-LV
Industrial Layer 2 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 5512-E-F4G-T8G-LV
Industrial Layer 3 Gigabit Switch
8 x RJ-45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
Lynx 5512-F4G-T8G-LV
Industrial Layer 2 Gigabit Switch
8 x RJ-45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
Lynx-RB-FT3G-MV
IEC 61850-3 Redundancy Box, Layer 2
HSR/PRP seamless redundancy
3x1G combo fiber or copper ports
KEMA approval IEC 61850-3 and IEEE 1613
Lynx 5612-E-F4G-T8G-LV
IEC 61850-3 Substation Automation Switch, Layer 3
8 x RJ-45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
Lynx 5612-F4G-T8G-LV
IEC 61850-3 Substation Automation Switch, Layer 2
8 x RJ-45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
MDW-45 HV
RS-422/485 Converter
1 x RS-422/485 4-position detachable screw terminal, 300 bit/s to 115.2 kbit/s
1 x RS-232 9-pin D-sub, 1200 bit/s to 115.2 kbit/s
MDW-45 LV
RS-422/485 Converter
1 x RS-422/485 4-position detachable screw terminal, 300 bit/s to 115.2 kbit/s
1 x RS-232 9-pin D-sub, 1200 bit/s to 115.2 kbit/s
Merlin-3103-T2G-PFN-(PFT)-DCi0936
450 MHz Cellular Router for Private LTE Networks
Band 31, 40 & 72
Trusted Platform Module
2 x 10/100/1000 Mbit/s, Ethernet TX, RJ45
2 x Mini SIM card slot
2 x SMA compatible connectors
Merlin-3103-T2G-PFO-DCi0936
Compact 5G Cellular Router
Trusted Platform Module
GPS, GLONASS, BeiDou, Galileo
2 x 10/100/1000 Mbit/s, Ethernet TX, RJ45
2 x Mini SIM card slot
4 x SMA compatible connectors - 5G
Merlin-3103-T2G-QFR-G-DCi0936
Compact LTE Cat-4 Cellular Router
Trusted Platform Module
GPS, GLONASS, BeiDou, Galileo
2 x 10/100/1000 Mbit/s, Ethernet TX, RJ45
2 x Mini SIM card slot
3 x SMA compatible connectors - 4G
Merlin-4106-T4-S1-DI1
Industrial Cellular Router
LTE Cat-4
Trusted Platform Module
Secure Boot
9.6 - 60 V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS-232 or Digital Input
Merlin-4106-T4-S1-DI1-QFT
Industrial Cellular Router
LTE Cat-M1/NB-IoT
Trusted Platform Module
Secure Boot
9.6 - 60 V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS-232 or Digital Input
Merlin-4407-T4-S2-LV
Industrial 4G LTE Cellular Router
Trusted Platform Module
Secure Boot
Isolated power input 9.6 V - 60 V DC
4 x 10/100 Mbit/s Ethernet, RJ-45
2 x Serial ports RS-232/RS-485
2 x Mini SIM slot
1 x GNSS SMA female antenna connector
Merlin-4609-F2G-T4-S2-DI6-DO2-LV
Industrial IEC 61850-3 Cellular Router
LTE Cat-4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
2 x 1000 Mbit/s SFP
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45
1 x GPS SMA female antenna connector
Merlin-4610-T6-S2-LV-QFZ-PFN-(PFT)
Industrial Dual-Radio Cellular Router
LTE Cat-4 & 450 MHz (Bands 31, 40 & 72)
6 x 10/100 Mbit/s, Ethernet TX, RJ45
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45
5 x SMA compatible connectors
TPM, Secure Boot, 802.1X, IPsec, Firewall
Merlin-4707-T4G-S2-DI6-DO2-LV-QFX
Industrial Cat-M1/NB-IoT Cellular Router
LTE Cat-M1 / NB-IoT
4 x GbE RJ-45
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45
TPM, Secure Boot, 802.1X, VPN, firewall
Merlin-4708-V-T4G-S2-DI6-DO2-LV-QFR
Industrial VDSL LTE Cellular Router
LTE Cat-4
Trusted Platform Module
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ-11
4 x GbE RJ-45
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45
Merlin-4758-V-T4G-S2-DI6-DO2-LV-PFO
Industrial VDSL 5G Cellular Router
Trusted Platform Module keeps cryptographic keys secure
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ-11
4 x GbE RJ-45
6 x Digital input
4 x SMA compatible connectors
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS-232 or RS-485, RJ-45
ODW-710-F1
Point-to-Point Fibre Converter PROFIBUS
1 x PROFIBUS DP 9 600 bit/s – 12 Mbit/s
ODW-710-F2
Ring / Multidrop Fibre Converter PROFIBUS
1 x PROFIBUS DP 9 600 bit/s – 12 Mbit/s
ODW-730-F1
Point-to-Point Fibre Converter RS-422/485
1 x RS-422/485 port 300 bit/s – 1.5 Mbit/s
ODW-730-F2
Ring / Multidrop Fibre Converter RS-422/485
1 x RS-422/485 port 300 bit/s – 1.5 Mbit/s
Oryx-7321
EN 50155 mmWave train-top and train node
Up to 3 Gbps wireless throughput between train and track
IP66 and -25° to +55°C ambient temperature range supported
Power feed 20 to 48 VDC
Oryx-7322
EN 50155 mmWave trackside distribution node
Up to 3 Gbps wireless throughput between train and track
IP66 and -25° to +55°C ambient temperature range supported
Power feed 20 to 48 VDC
PII-2G
Industrial 2-port PoE Injector
2 x 10/100/1000 TX data in ports
2 x 10/100/1000 TX IEEE 802.3af/at PoE ports
PS-260
DIN-rail Power Supply Unit
Input voltage: 100 to 240 VAC, 50 to 60 Hz or 110 to 159 VDC
Output voltage: 48 to 56 VDC
Output current: 4.0 A to 6.0 A
PS-60
DIN-rail Power Supply
Input voltage: 100 to 240 VAC, 50 to 60 Hz or 110 to 250 VDC
Output voltage: 24 to 28 VDC
Output current: 2,5 A
PSI-010-FT2G-P8G
Industrial Gigabit PoE+ Booster Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s RJ-45/SFP combo ports
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +75°C
RCP-1000 Series
Modular Computing Platform for demanding applications
Scalable performance due to SMARC standard
3x 1 Gbps ETH, M12 connectors
4x RS232/422/485, D-sub connectors
2x DP, 2x USB 3.0
Integrated SSD storage
Various mounting options – DIN rail, wall-mount, 19” sub rack
Build-in wireless interface, LTE / Wi-Fi
Power feed 24 to 110 VDC
RedFox-5328-F4G-T24-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5328-E-F4G-T24-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5328-F4G-T24-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5328-E-F4G-T24-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F4G-T24G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F4G-T24G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F4G-T24G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F4G-T24G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F16G-T12G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F16G-T12G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F16G-T12G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F16G-T12G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F24G-T4G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F24G-T4G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-T28G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5528-E-T28G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5528-T28G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5528-E-T28G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-HV
19" Managed Substation Automation Switch - High voltage version, layer 2
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-HV
19" Managed Substation Automation Switch - High voltage version, layer 3
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 2
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 2
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 3
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 3
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-HV
19" Managed Substation Automation Switch - High voltage version, layer 2
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 2
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 2
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-HV
19" Managed Substation Automation Switch - High voltage version, layer 3
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 3
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 3
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F24G-T4G-HV
19" Managed Substation Automation Switch
High voltage version with single power supply, layer 2
110 to 240 V AC/DC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F24G-T4G-HVHV
19" Managed Substation Automation Switch
High voltage version with dual power supply, layer 2
110 to 240 V AC/DC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F24G-T4G-HV
19" Managed Substation Automation Switch
High voltage version with single power supply, layer 3
110 to 240 V AC/DC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F24G-T4G-HVHV
19" Managed Substation Automation Switch
High voltage version with dual power supply, layer 3
110 to 240 V AC/DC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F24G-T4G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F24G-T4G-LVLV
19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F24G-T4G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F24G-T4G-LVLV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-7528-F4G10-F12G-T12G-LV
19” Managed 10 Gigabit Ethernet Switch - low voltage, layer 2
24 to 48 VDC
4 x 10 Gbit/s, SFP+
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
12 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-7528-E-F4G10-F12G-T12G-LV
19” Managed 10 Gigabit Ethernet Switch - low voltage, layer 3
24 to 48 VDC
4 x 10 Gbit/s, SFP+
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
12 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RFI-119-F4G-T7G
Managed Ethernet Switch
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-219-F4G-T7G
Industrial Routing Switch
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-219-F4G-T7G-F8
Industrial Routing Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 100 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-219-T3G
Industrial Routing Switch
3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 10/100 Mbit/s, Ethernet TX, RJ-45
SandCat-2305-F1-MM-T4-LV
Industrial Ethernet 5-port Unmanaged Switch
4 x 10/100 Base T(X) ports
1 x 100 Base F(X) multi-mode SC port
SandCat-2305-F1-SM-T4-LV
Industrial Ethernet 5-port Unmanaged Switch
4 x 10/100 Base T(X) ports
1 x 100 Base F(X) single-mode SC port
SandCat-2305-T5-LV
Industrial Ethernet 5-port Unmanaged Switch
5 x 10/100 Base T(X) ports
SandCat-3505-T5G-LV
Industrial Unmanaged Switch
5 x RJ-45, 10/100/1000 Mbit/s ports
12 - 48 VDC
-40 to +70 °C
SandCat-3505-F1G-T4G-LV
Industrial Unmanaged Switch
4 x RJ-45, 10/100/1000 Mbit/s ports
1 x 100/1000 Mbit/s SFP port
12 - 48 VDC
-40 to +70 °C
SandCat-MC-3502-F1G-T1G-LV
Industrial Ethernet Media Converter
1 x RJ-45, 10/100/1000 Mbit/s ports
1 x 100/1000 Mbit/s SFP port
12 - 48 VDC
-40 to +70 °C
SDI-862-MM-SC2
Unmanaged 8-port Ethernet Fibre Switch
6 x 10/100 Base T ports
2 x 100 Base-FX ports multi-mode SC connector
SDI-862-SM-SC30
Unmanaged 8-port Ethernet Fibre Switch
6 x 10/100 Base T ports
2 x 100 Base-FX ports single-mode SC connector
100 Mbit/s Singlemode SFP Transceivers
Range variants from 20 to 120 km
Operating temperature: -40 to +85°C
100 Mbit/s & 1 Gbit/s Multimode SFP Transceivers
Range variants from 550 m to 20 km
Operating temperature: -40 to +85°C
1 Gbit/s Singlemode SFP Transceivers
Range variants from 10 to 110 km
Operating temperature: -40 to +85°C
100 Mbit/s and 1 Gbit/s Copper SFP Transceivers
100 m range over CAT 5 Ethernet cable
Operating temperature: -40 to +85°C
2.5 Gbit/s SFP Transceivers
Range variants from 500 m to 80 km
Operating temperature: -40 to +85°C
10 Gbit/s SFP Transceivers
Range variants from 500 m to 80 km
Operating temperature: -40 to +85°C
100 Mbit/s with BiDi SFP Transceivers
Range variants from 20 to 120 km
Operating temperature: -40 to +85°C
1 Gbit/s with BiDi SFP Transceivers
Range variants from 20 to 80 km
Operating temperature: -40 to +85°C
100 Mbit/s and 1 Gbit/s SFP transceivers for Substation Automation
KEMA Gold Type Test certified
Range variants from 2 km to 80 km
Operating temperature: -40 to +85°C
100 Mbit/s Multimode and Singlemode SFP Transceivers with PHY
Range variants from 2 to 80 km
Operating temperature: -40 to +85°C
Viper-3512-(E)-T12
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
12 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T4-P8
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
12 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-T9
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
3 x 1 Gbps Ports
9 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-T1-P8
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
3 x 1 Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T5G-T7
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
5 x 1 Gbps ports
7 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-P2G-T1-P6
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
5 x 1 Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T20
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
20 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T12-P8
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
20 x 100 Mbps ports, whereof 8 PoE
1 x USB backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T4G-T16
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
4 x 1 Gbps ports
16 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T2G-P2G-T10-P6
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
4 x 1 Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T2G-P2G-T6-P10
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
4 x 1 Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 10 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3508-(E)-T8G
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
8 x 1 Gbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3508-E-T8-TBN
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 3 configurations
8 x 100 Mbps ports
2 Bypass relays
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3508-E-T8G-TBN
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 3 configurations
8 x 1 Gbps ports
2 Bypass relays
1 x USB Backup and restore port
1 x RS-232 console port
Viper-002-T1G-PL1
EN 50155 Gigabit Ethernet Powerline Bridge
1 x 1 Gbps Ethernet port
1 x 2-wire cable port
Viper-002-T1-PL1
EN 50155 Fast Ethernet Powerline Bridge
1 x 100 Mbps Ethernet port
1 x 2-wire cable port
Viper-208-TBN
Managed EN 50155 Backbone Routing Switch
8 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-208-T8G-TBN
Managed EN 50155 Backbone Routing Switch
8 x Gbps ports
1 x USB
1 x RS-232 console port
Viper-208-T8G
Managed Gigabit Routing Switch
8 x1 Gbps ports
1 x USB
1 x RS-232 console port
Viper-208-T4G-TBN
Managed EN 50155 Backbone Routing Switch
4 x Gbps ports
4 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A
EN 50155 Managed Routing Switch
12 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-112A-P8-HV
EN 50155 Managed PoE Switch - high voltage version
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-P8-LV
EN 50155 Managed PoE Switch - low voltage version
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-P8-HV
EN 50155 Managed PoE Routing Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-P8-LV
EN 50155 Managed PoE Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T3G
EN 50155 Managed Gbps Switch
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A-T3G
EN 50155 Managed Gbps Routing Switch
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-112A-T3G-P8-HV
EN 50155 Managed Gbps PoE Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T3G-P8-LV
EN 50155 Managed Gbps PoE Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T5G
EN 50155 Managed Gbps Switch
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A-T5G
EN 50155 Managed Gbps Routing Switch
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-112A-T5G-P8-HV
EN 50155 Managed Gbps PoE Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T5G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T5G-P8-LV
EN 50155 Managed Gbps PoE Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T5G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-220A
EN 50155 Managed Routing Switch
20 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-120A-P8-HV
EN 50155 Managed PoE Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-220A-P8-HV
EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-120A-P8-LV
EN 50155 Managed PoE Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-220A-P8-LV
EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-120A-T4G
EN 50155 Managed Gbps Switch
4 x Gbps ports
16 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-220A-T4G
EN 50155 Managed Gbps Routing Switch
4 x Gbps ports
16 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-120A-T4G-P8-HV
EN 50155 Managed Gbps PoE Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-220A-T4G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
