Railway Wi-Fi Access Point

CyBox AP 2-W


✓ Railway WLAN Access Point

• IEEE 802.11ac compliant with 3x3 MIMO
• Up to two Wi-Fi interfaces for dual band mode
• Backwards compatible with 802.11a/b/g/n

✓ High speed connectivity

• Dual 1 Gigabit Ethernet on M12 X-coded connectors
• Optional internal high-speed Ethernet switch
• Optional bypass relays

✓ Designed and built for onboard rail applications

• Power over Ethernet (PoE+) according to IEEE 802.3at
• Ultra-wide-range power supply 24 to 110 VDC
• Built-in cybersecurity
• Maintenance-free design
• -40 °C to +70 °C operating temperature
• EN 50155 compliant

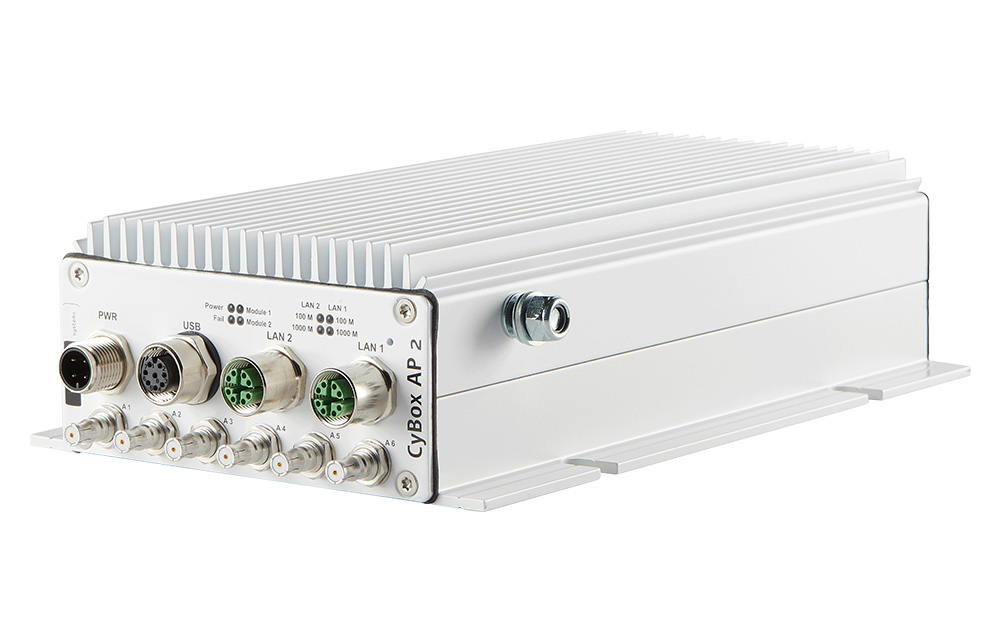

The CyBox AP 2-W is a member of the CyBox family – robust access points for railway applications. It is particularly designed to meet the requirements of rolling stock applications. It offers stable, secure, and high bandwidth connections between the local Ethernet and wireless clients. With the assistance of the access point, multiple mobile Wi-Fi-compatible devices in a passenger train or subway have the possibility to communicate with the Internet or access local data, such as timetable information and multimedia data.

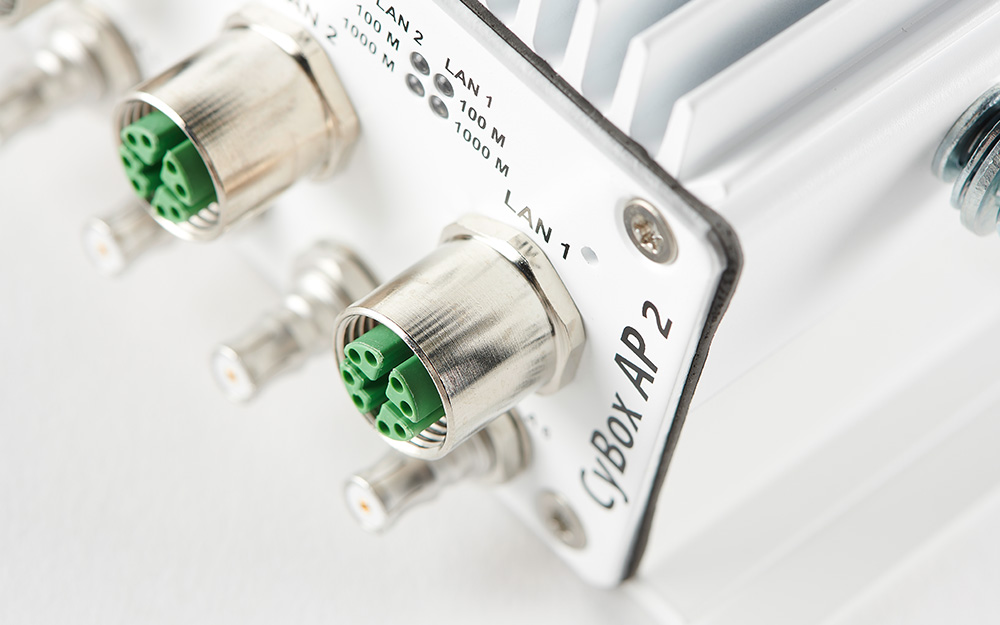

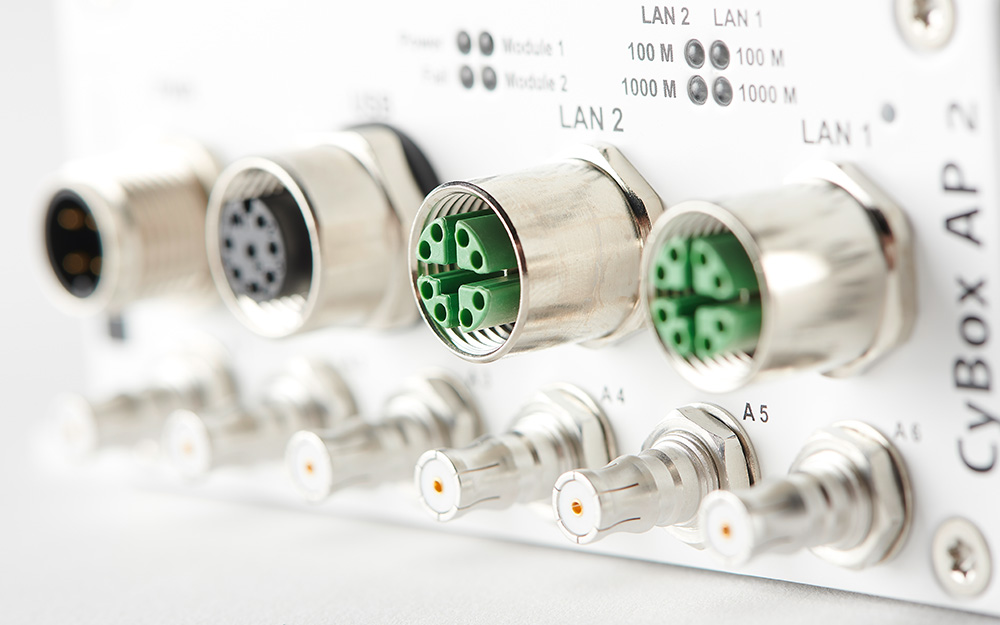

On the fixed network side, the access point features two Gigabit Ethernet ports which are, as an option, internally connected to an unmanaged switch and can be used either for redundancy to increase the availability of services, or to connect a second CyBox AP 2-W. The bypass relay option ensures a high-speed connection even if the access point is powered down.

The CyBox AP 2-W provides flexible powering options by either an internal power supply or Power-over-Ethernet (PoE+). The PoE daisy chaining offers wireless connectivity with two access points using just one cable – a noticeable cost saving factor especially in retrofit programs.

The CyBox AP 2-W firmware provides a convenient management interface via a web service. Besides global setup parameters the open source software OpenWrt allows the configuration of the radio interfaces, including provider information and the login dialog, as well as the setup of the stateful firewall. The access point and router configurations as well as the management firmware can be updated remotely. Furthermore the built-in fully configurable stateful firewall and multi-VPN support with hardware-accelerated encryption ensures communication security.

Lue lisää

Tekniset tiedot

Railway WLAN Access Point with Wi-Fi 5 dual radio
3x3 MIMO
6x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC
