Mobile Wireless Gateway with 5G and Wi-Fi 5

CyBox GW 2-P


✔ Mobile wireless gateway with 5G and Wi-Fi 5

• Up to three 5G interfaces for channel-bundled WAN access
• Up to 4 SIM cards for each 5G interface
• Up to two Wi-Fi 11ac interfaces for dual-band mode, 3x3 MU-MIMO with up to 1300 Mbps
• Dual 1 Gigabit Ethernet on M12 X-coded connectors
• Cold bypass for daisy chaining

✓ High-end wireless communication

• Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
• Up to 2 sockets for extensions (2.5 GbE, M.2 PCIe SSD)
• Optional internal SSD storage of up to 960 GB
• Integrated GNSS

✓ Designed and built for rail applications

• Ultra-wide-range power supply 24 to 110 VDC
• Built-in cybersecurity
• Maintenance-free design
• -40 °C to +70 °C operating temperature
• EN 50155 compliant

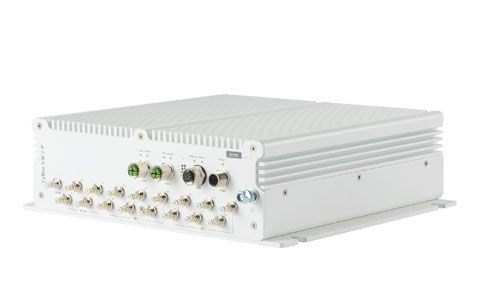

The CyBox GW 2-P is a robust wireless communication gateway for railway applications. It offers stable, secure, and broadband 5G/LTE connections for train-to-ground communication and high-speed internet. The device hosts multiple 5G/LTE interfaces for parallel channel use and thus maximized throughput, multiple Wi-Fi interfaces to connect to client devices such as mobile phones, as well as dual Gigabit Ethernet ports to attach the device to a backbone network. Country-specific 5G/LTE/Wi-Fi standards are adopted for worldwide use in every type of train.

There is mounting space for up to four radio modules within the CyBox GW 2-P. Each 5G/LTE module can be provided with up to four SIM cards for an optimal net coverage and maximum provider flexibility. The Wi-Fi interfaces allow for connecting clients at high data rates. The gateway can be equipped with two 11ac 3x3 MIMO modules to boost network efficiency and maximize data throughput.

To provide the CyBox GW 2-P with internal storage, mounting space for a M.2 solid state drive is supplied. It can be used for local content or data storage.

The CyBox GW 2-P firmware provides a convenient management interface via a web service. Besides global setup parameters the open source software OpenWrt allows the configuration of the radio interfaces, including provider information and the login dialog, as well as the setup of the stateful firewall. The access point and router configurations as well as the management firmware can be updated remotely. Furthermore, the built-in fully configurable stateful firewall and multi-VPN support with hardware-accelerated encryption ensures communication security.

Lue lisää

Tekniset tiedot

EN 50155 Mobile Wireless 5G Gateway
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4x SIM card slots for each 5G interface
2x 1 Gbps ports, M12 connectors
Up to 2x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC
