EN 50155 Wi-Fi 6 Access Point

Ibex-1510

Ominaisuudet

✓ Reliable, compact and secure WLAN access point

• Dual Wi-Fi 6 802.11ax WLAN interfaces
• Concurrent 2.4 GHz and 5 GHz
• Low power consumption
• Cybersecurity features supporting critical infrastructure installations

✓ Designed for onboard usage

• EN 50155 and EN 45545-2 Certified
• Compact design with M12 interfaces
• Wide temperature range
• MACsec and Secure Boot for TCMS

✓ Latest generation 802.11 design

• IEEE 802.11ax for maximum efficiency
• Client management features
• Flexible and easy setup

Yhteenveto

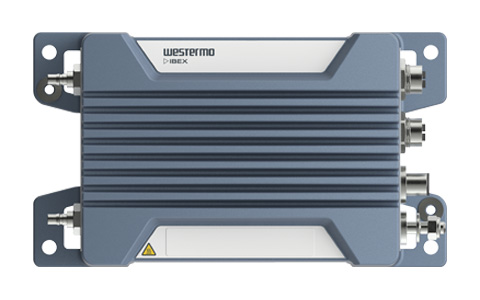

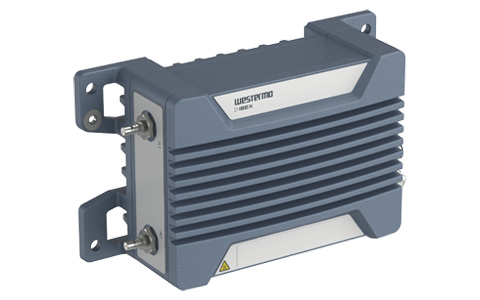

The Ibex-1510 is a concurrent dual-band 802.11ax WLAN access point and client product for onboard and stationary applications. It provides reliable efficient high-speed data transfers and can be used for maintenance access, as part of a TCMS network or as a passenger hotspot.

The Ibex-1510 is designed to withstand the tough environment on-board trains, exposed to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.

A GORE-TEX® membrane prevents internal condensation. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and spikes/surge. IP66 protection prevents ingress of water and dust even at the quick connect QMA connectors.

An overall optimised design results in a compact form factor in combination with very high MTBF for easy integration in space restricted installations and low lifecycle cost.

Thorough type testing at independent labs certifies the compliance to a wide range of standards, including EN 50155 and EN50121-4.

Powered by the SW6 operating system, the Ibex-1510 is equipped with the latest cybersecurity features and updates.

Lue lisää

Tekniset tiedot

EN50155 Wi-Fi 6 Dual Radio Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz

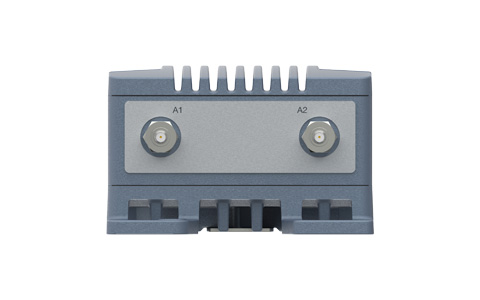

2 x QMA compatible antenna connectors
with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
