• 2.4 GHz and 5 GHz
• Flexible and easy set-up
• Extended operating temperature range with guaranteed performance across the range
• High-level isolation enables direct mains connectivity
• EN 50155 approved for usage onboard trains and locomotives
• IEEE 802.11ac Wave2 for maximum capacity
• 4x4 Multi-User MIMO
The Ibex-RT-610 consists of concurrent dual-band 802.11ac Wave2 Wireless LAN Access Points for on-board and stationary applications. They ensures reliable, high-speed data, airtime fairness, band steering, and client steering, and can be used as passenger hotspots or as access points for connecting wireless industrial clients.
The Ibex-RT-610 is designed to withstand the tough environment on-board trains, exposing the switch to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.
A GORE-TEX® membrane prevents internal condensation. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and spikes/surge. IP66 protection prevents ingress of water and dust even at the quick connect QMA connectors.
An overall optimised design results in a compact form factor in combination with very high MTBF for easy integration in space restricted installations and low lifecycle cost. Thorough type testing at independent labs certifies the compliance to a wide range of standards, not least EN 50155 and FCC.
Meeting the requirements of the railcar market, the Ibex-RT-610 is very well suited for deployment in any other application with severe operating conditions and tough environments, for instance in the mining or shipping industry
EN 50155 WLAN Dual Radio Access Point
4x4 MU-MIMO 5 GHz
2x2 MIMO 2.4 GHz

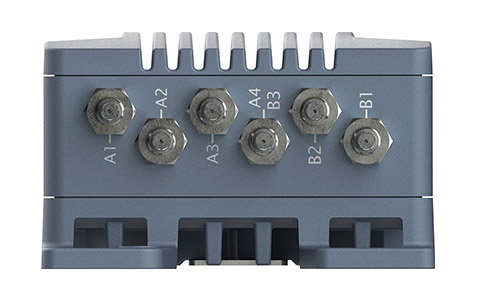

6 x QMA compatible antenna connectors

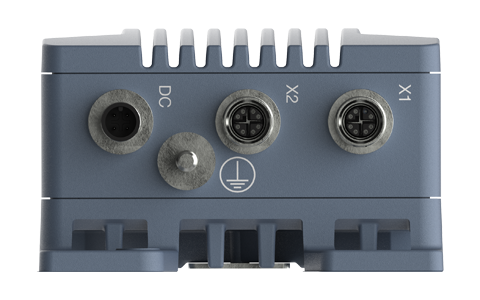

2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
