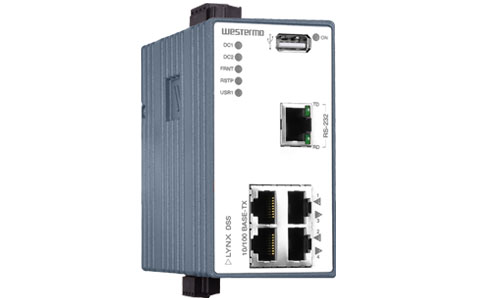

Managed Device Server Switch with Routing Functionality

L205-S1
The Lynx Series of Ethernet Switches by Westermo.

Features

✔ Compact Device Server Switch for legacy application

• RS-232 serial port
• Advanced WeOS Layer 3 functionality
• Low power consumption

✔ Designed for use in industrial applications

• Dual 19 – 60 VDC power input
• Highly configurable I/O contact
• Robust metal DIN rail housing

✔ Robust for long service life

• 677,000 hours MTBF to MIL-HDBK-217K
• –40 to +70°C (–40 to +158°F) with no moving parts

✔ Unique future proof industrial networking solutions

• Legacy IP solutions
• Network IP Security and remote access
• Multiple network resilience solutions

Summary

Lynx DSS is available in several versions, the L205-S1 is a device server with a layer 3 industrial Ethernet switch, powered by the Westermo WeOS network operating system. Lynx DSS is the most compact and has the lowest power requirements in this class of device servers. Lynx DSS has 4 10/100 Mbit/s ports and one RS-232 port.

Lynx DSS is designed for simple use in industrial applications, from the robust DIN rail clip solution to the configurable fault contact and the industrial level dual power inputs.

Only industrial grade components are used which gives the Lynx DSS an MTBF of 677,000 hours and ensures a long service life. A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx DSS has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside application.

WeOS has been developed by Westermo to allow us to offer cross platform and future proof solutions. WeOS can deliver unique IP security functionality for this class of product, for instance a Multiport DMZ can be constructed by utilising the internal port based firewall function or Modbus Gateway support. Remote secure access to a network can be provided using encrypted VPNs.

For more WeOS functionality please see the WeOS datasheet.

Read more

Technical Specifications

Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
