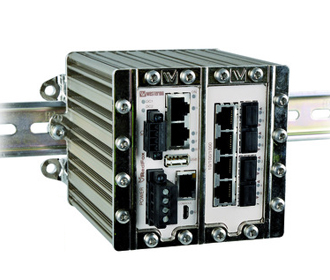

EX approved Industrial Routing Switch

RFI-211-F4G-T7G-EX

Features

Global approval for hazardous areas and maritime usage

• IECEx, International EX standard
• ATEX 2014/34/EU, EU directive
• DNV and GL approved

Designed for demanding Edge Network applications

• 11 ports, all gigabit
• Advanced WeOS layer 3 functionality
• Low power consumption DC supply

Robust for long service life

• 336,000 hours MTBF to MIL-HDBK-217K
• –40 to +70 °C without ventilation holes
• Industrial and trackside type tested

Unique future proof industrial networking solutions

• Simple web configuration with professional CLI
• Network IP Security and remote access
• Multiple network resilience solutions

Summary

RedFox is a high performance layer 3 industrial Ethernet switch designed for high network traffic applications.

Various port configurations are available that can be further customised with SFP transceivers RedFox is powered by the Westermo WeOS network operating system.

The RedFox is designed for use in heavy duty industrial applications in its robust aluminium housing. Its wide power range and I/O fault contact make it ideal for easy installation and monitoring in industrial applications.

Only industrial grade components are used which gives the RedFox an MTBF of 336,000 hours and ensures a long service life. A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. RedFox has been tested both by Westermo and external test houses to meet many EMC,isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments and rail tracksideapplication.

WeOS has been developed by Westermo to allow us to offer cross platform and future proof solutions.

WeOS can deliver unique IP security functionality for this class of product, for instance a Multiport DMZ can be constructed by utilising the internal port based firewall function. Remote secure access to a network can be provided using encrypted VPNs. For more WeOS functionality please see the WeOS datasheet.

Read More

Technical Specifications

EX approved Industrial Routing Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
