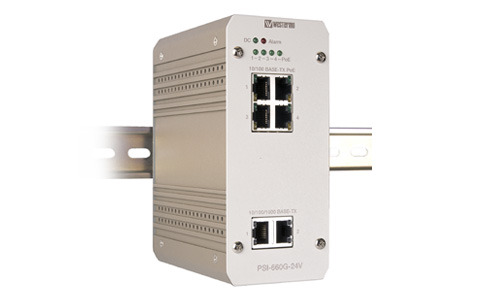

4 PoE+2Gb Booster PoE Switch

PSI-660G-24V

Features

Industrial PoE capabilities

• Four 10/100 TX IEEE 802.3af PoE ports plus two 10/100/1000TX uplink ports
• Built-in DC 12 V ~ 24 V Booster for rail, bus, transit transportation
• 60 W total power budget with max. 15.4 W per port for PoE cameras

High bandwidth ports with monitoring

• Two gigabit Ethernet ports for larger uplink bandwidth of surveillance
• QoS for prioritized video transmission

Industrial design

• Fault relay for active warning of port failure
• –25 ~ +60ºC operating temperature

Summary

The Westermo PSI-660G is an PoE booster Switch designed with 4 Fast Ethernet PoE ports and 2 Gigabit uplink ports to ensure high-bandwidth uplink connection for large-scale surveillance in transportation system networks.

The PSI-660G integrates revolutionary vehicle PoE technology – the 12 V to 48 V power booster makes the unit ideal for the deployment of standard PoE IP cameras feasible on buses, railcars, ships, etc.

The compact IP-31 grade aluminum alloy metal enclosure allows the PSI-660G to reliably operate under wide temperature ranges (–25 ~ +60ºC).

The PSI-660G can be powered by DC 12 ~ 24 V and deliver 15.4 W per port and 60W per unit at DC 48 V to PoE-enabled devices such as IP cameras, PoE Wireless APs, PoE IP phones etc.

Read more

Technical Specifications

4x PoE+2Gb Booster PoE Switch
4x 10/100 TX IEEE 802.3af PoE ports plus 2x 10/100/1000TX uplink ports
