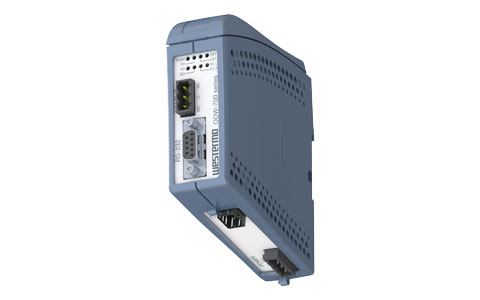

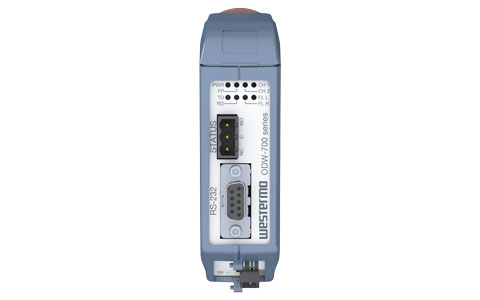

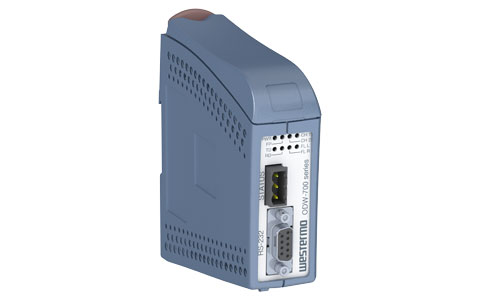

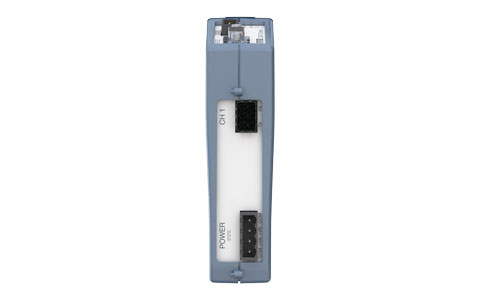

Point-to-Point Fibre Converter RS-232

ODW-720-F1

Features

✔ Numerous fibre configuration options

• Up to 120 km distance
• BiDi support (single fibre)
• Multimode and singlemode SFPs

✔ Designed for use in Industrial applications

• Dual 10 V to 60V DC power input
• 500,000h MTBF according to MIL HDBK-217K
• Galvanically isolated status output

✔ Unique solutions for serial RS-232 protocols

• Data rates to 250 kbit/s
• Up to 12 data bits
• Dual channel for status (RTS/CTS) transmission

✔ Simple to use and install

• Transparent to any data rate
• Comprehensive diagnostic LEDs
• Compact housing with integral DIN rail clip

Summary

The ODW-720-F1 has been designed to allow RS-232 protocols to be transmitted point-to-point over a fibre optic link.

The design allows the use of a range of Westermo verified SFP (Small Form Pluggable) transceivers which can provide solutions with, for example, only a single fibre or distances up to 120 km.

This unit has been designed for industrial use where the requirement is for a long and reliable service life, in a harsh environment. To ensure this reliable operation we manufacture using the highest quality components.

The ODW-720 draws on Westermo’s many years of knowledge of serial protocols and can even transmit the RTS/CTS hardware controls if required.

The ODW is simple to install, being small, with a simple integral DIN rail clip. The unit is totally transparent to any data rate so no configuration is needed.

The comprehensive LEDs provide a quick and easy way of detecting any network problems that may be encountered.

Read more

Technical Specifications

Point-to-Point Fibre Converter RS-232
1 xRS-232 port 300 bit/s – 250 kbit/s
