• IEEE802.11ac compliant with 4x4 MU-MIMO Wave 2
• Up to two Wave 2 interfaces for dual band mode
• Backwards compatible with 802.11a/b/g/n
• Dual 1 Gigabit Ethernet on M12 X-coded connectors
• Optional high-speed Ethernet 2.5 GBaseT copper or
10 GBaseT optical
• Optional bypass relays
• Power over Ethernet (PoE+) according to IEEE 802.3at
• Ultra-wide-range power supply 24 to 110 VDC
• Built-in cybersecurity
• Maintenance-free design
• -40 °C to +70 °C operating temperature
• EN 50155 compliant

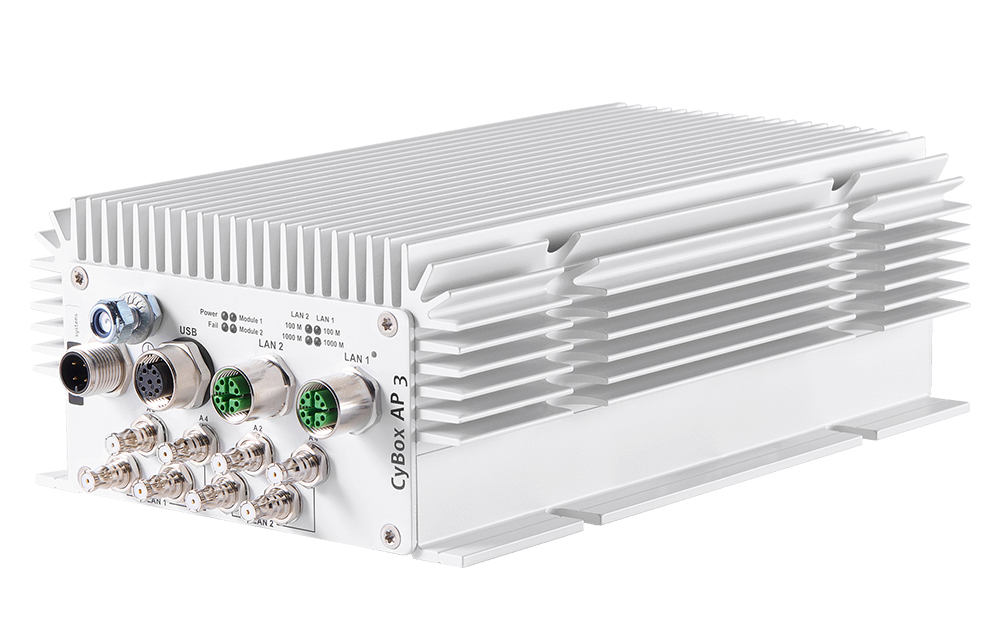

The CyBox AP 3-W is a member of the CyBox family – robust access points for railway applications. It is particularly designed to meet the requirements of rollingstock applications. It offers stable, secure, and high bandwidth connections between the local Ethernet and wireless clients. With the assistance of the access point, multiple mobile Wi-Fi-compatible devices in a passenger train or subway have the possibility to communicate with the Internet or access local data, such as timetable information and multimedia data.
On the fixed network side, the access point features two 1 Gigabit Ethernet ports and higher bandwidth options to create a faster backbone. The 2.5 Gigabit Ethernet interface is ideal for retrofit programs with existing cabling. The fiber optic option mainly addresses new infrastructures. The bypass relay option ensures a high-speed connection even if the router is powered down.
The CyBox AP 3-W provides flexible powering options by either an internal power supply or Power-over-Ethernet (PoE+). The PoE daisy chaining offers wireless connectivity with two access points using just one cable – a noticeable cost saving factor especially in retrofit programs.
The CyBox AP 3-W firmware provides a convenient management interface via a web service. Besides global setup parameters the open source software OpenWrt allows the configuration of the radio interfaces, including provider information and the login dialog, as well as the setup of the stateful firewall. The access point and router configurations as well as the management firmware can be updated remotely. Furthermore the built-in fully configurable stateful firewall and multi-VPN support with hardware-accelerated encryption ensures communication security.
Railway WLAN Access Point with WI-FI 5 Wave 2 dual radio
4 x 4 MU-MIMO
4 x QLS antenna connectors
1 x 1 Gbps ports, M12 connectors
1 x 2.5 Gbps ports, M12 connectors
Power feed 24 to 110 VDC
