Trackside WLAN Infrastructure Access Point



✓ WLAN Infrastructure Access Point

• 3 x 3 MIMO
• 2.4 GHz and 5 GHz
• Separate RF environment monitoring antenna
• Fibre ports for long-distance connections
• Flexible and easy set-up

✓ Designed and built for operational environments

• Extended operating temperature range with guaranteed performance across the range
• High-level isolation enables direct mains connectivity
• EN 50121-4 approval for trackside deployment

✓ High-end radio design for mission-critical capability

• High power and high sensitivity for extended range and reliable wireless coverage
• Interruption-free use of 5 GHz radar bands through advanced DFS (radar detection) features
• Disturbance free operation close to other radio devices

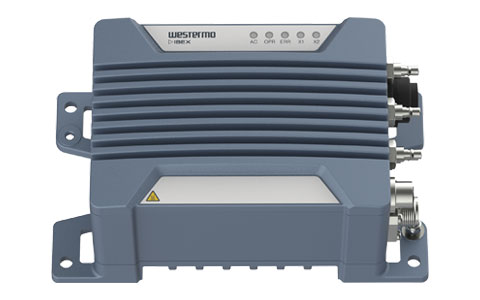

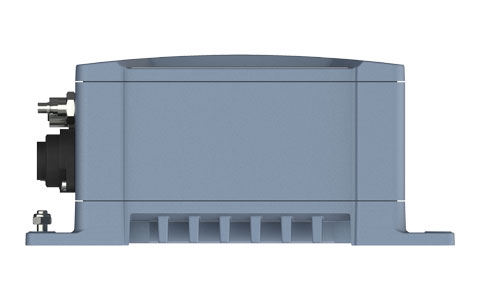

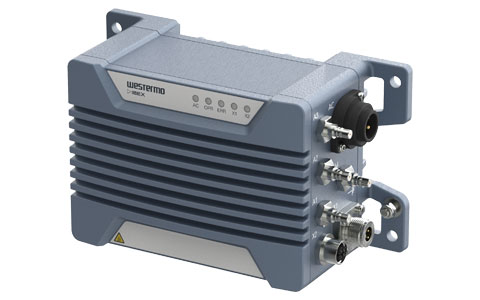

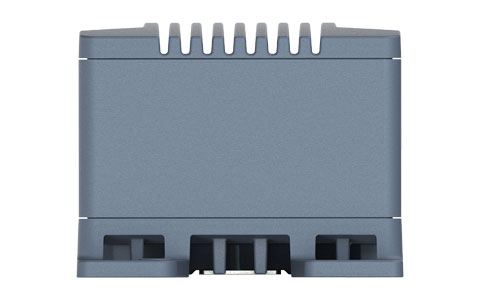

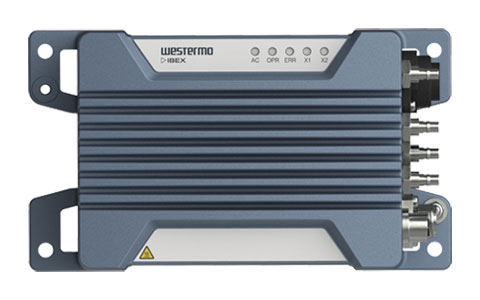

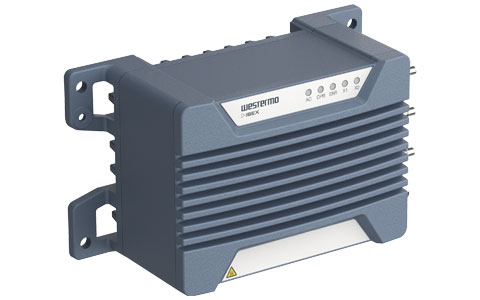

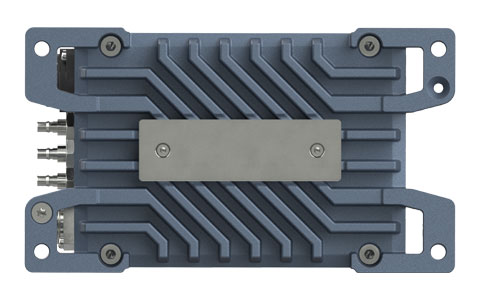

Ibex-RT-370 is a Wireless LAN Infrastructure Access Point for industrial or trackside network infrastructure. It ensures reliable, continuous high-speed connection to industrial wireless clients.

Ibex-RT-370 is designed to withstand the tough environment in, for instance, trackside applications, exposing the access point to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.

A GORE-TEX® membrane prevents internal condensation and high-level isolation protects against overvoltage and spikes/surges. Ibex-RT-370 comes with built-in 100-240 VAC mains power supply and IP66 environmental protection for water and dust, further simplifying installation and reducing external component needs. N-type radio connectors allow direct connectivity of thick low-loss feeder type RF cables.

The device comes with a high power radio interface calibrated to ensure high output power and excellent receiver sensitivity. It maintains high-speed data rates and reliable connection to industrial wireless clients even if the communication distance isincreased.Ibex-RT-370 provides an additional monitoring interface for out-of-band radar detection and monitoring, allowing surrounding WLAN devices and other interferences along the whole frequency band can be monitored, without adversely affecting the communication performance. Due to this, the device provides uninterrupted operation also on 5 GHz outdoor bands with radar detection (DFS) requirements.

An overall optimised design results in a compact form factor in combination with very high MTBF for easy integration and low lifecycle cost. Thorough type testing at independent labs certifies the compliance to a wide range of standards, including FCC.

Meeting the requirements of the railway and signalling market, Ibex-RT-370 is very well suited for deployment in any other application with severe operating conditions and tough environments, for instance in the mining and shipping industry.

Read more

Technical Specifications

WLAN Infrastructure Access Point
3x3 MIMO

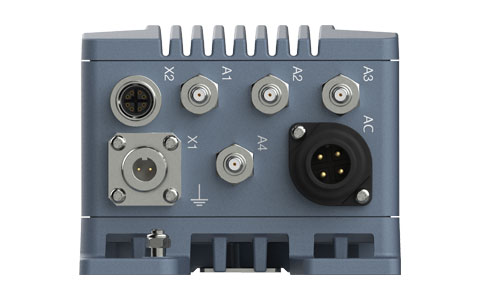

3 x QMA compatible antenna connectors
1 x Gbps port, M12 connector
1 x Gbps fibre optic port, ODC-2 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC or PoE
