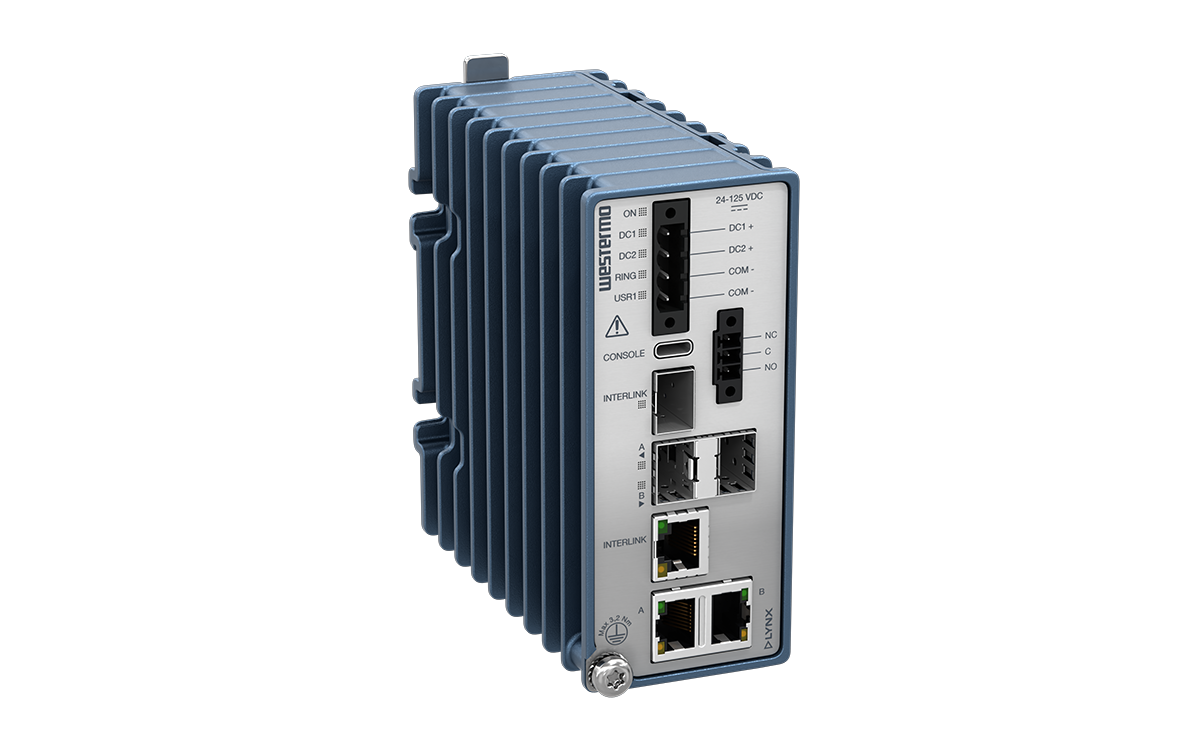

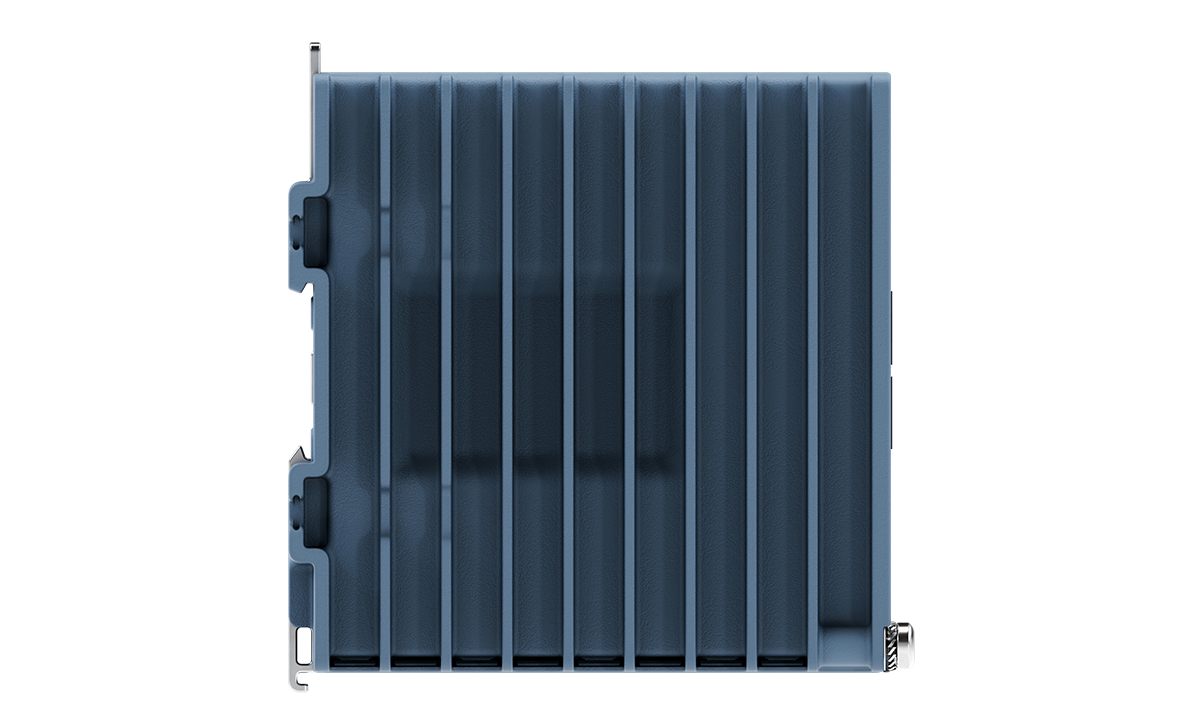

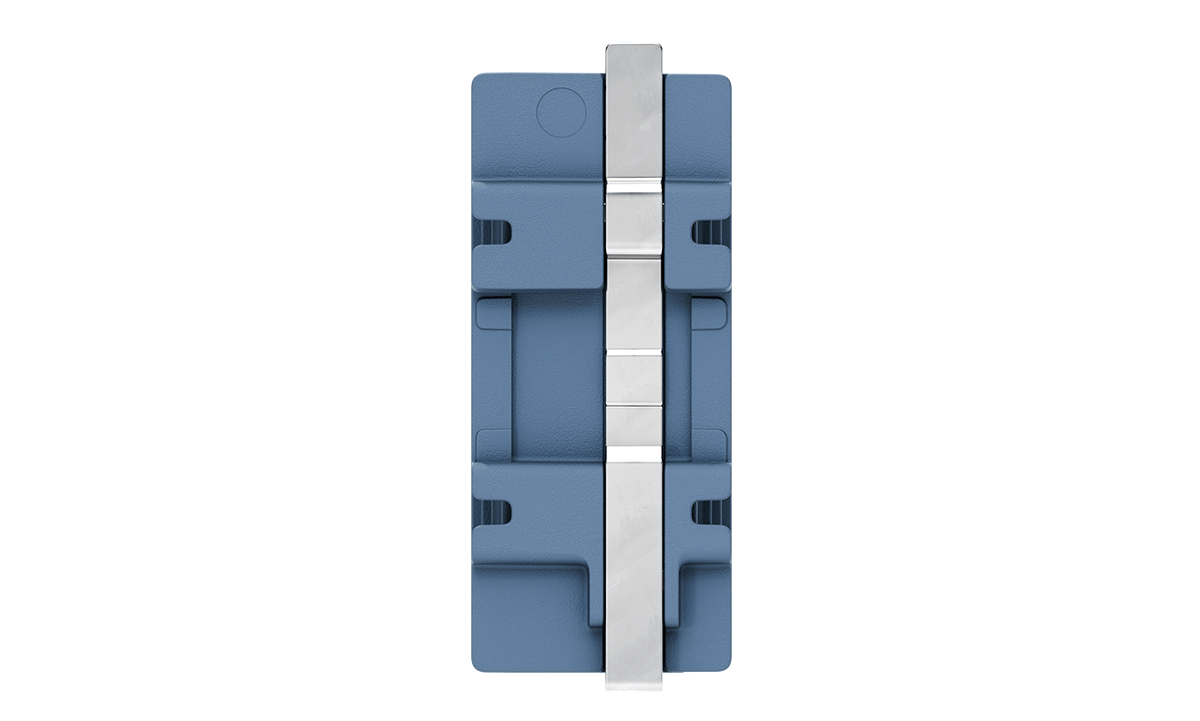

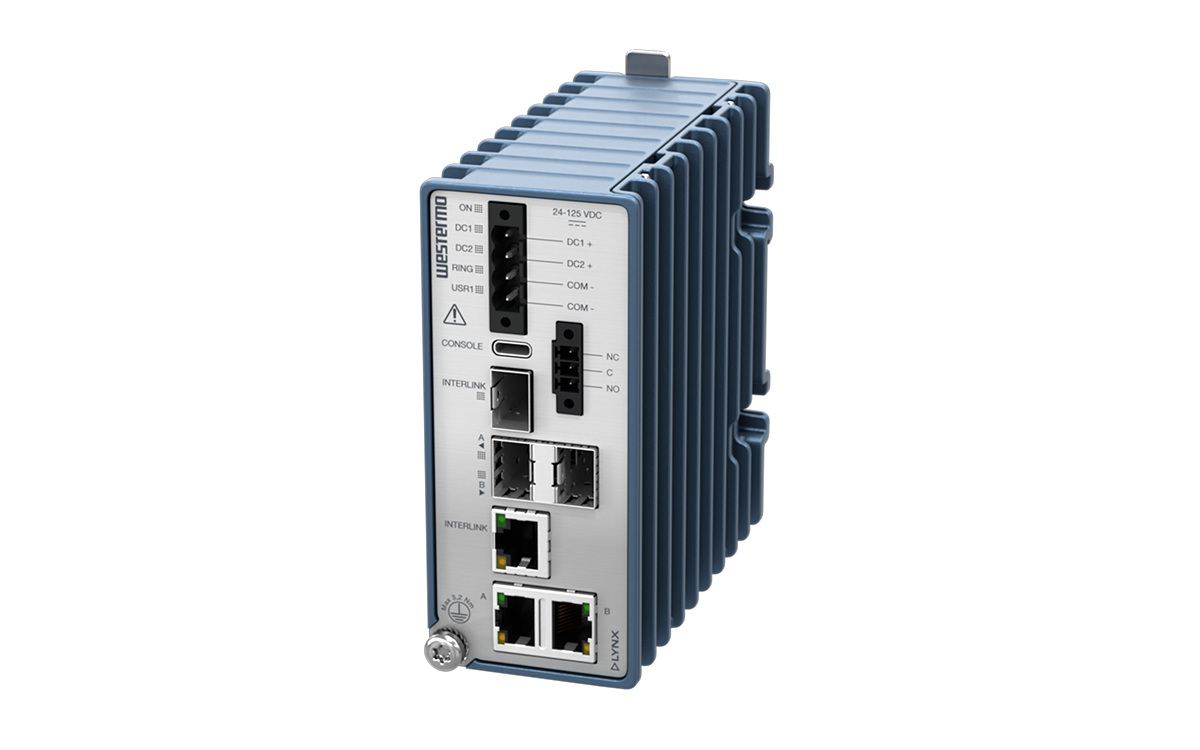

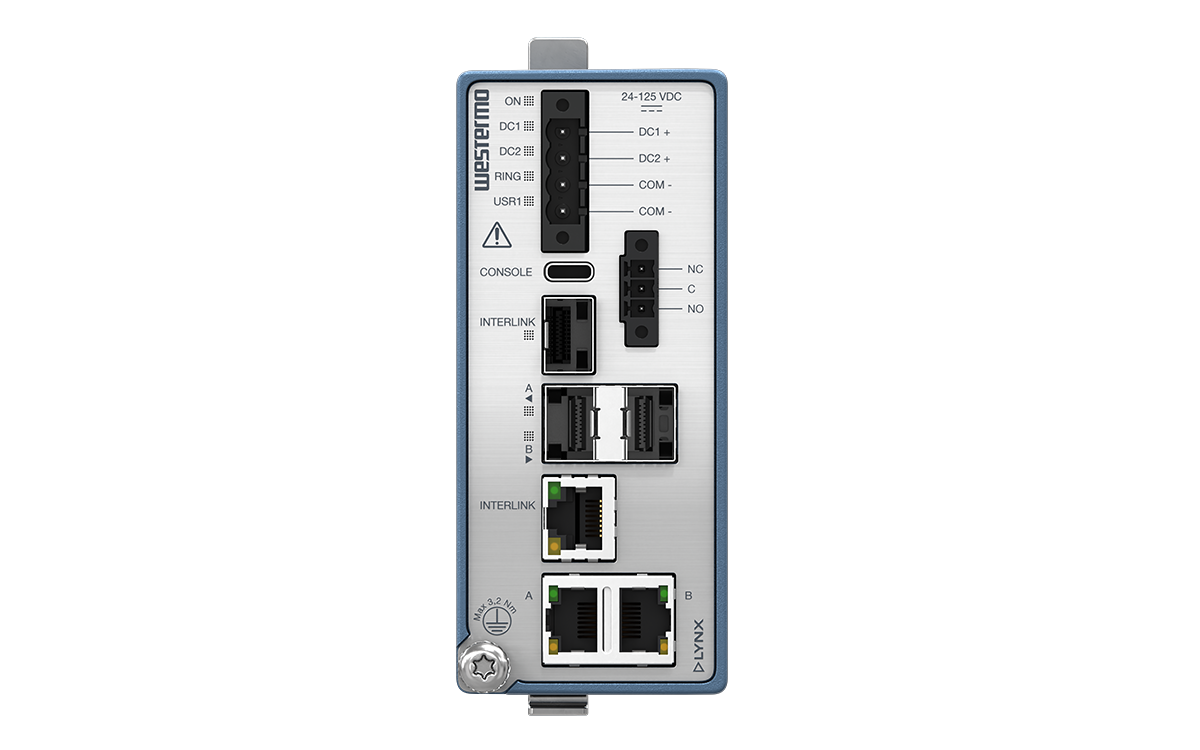

IEC 61850-3 and IEEE 1613 Redundancy Box

Lynx-RB-FT3G-MV

Spécifications

✔ Ideal for substations and their communication networks

• HSR/PRP seamless redundancy
• Supporting various substation topologies
• IEEE 1588v2 Precision Time Protocol (PTP)
• 3 x 1G combo fibre or copper ports for flexibility
• 1 x digital alarm output

✔ Proven robustness and reliability

• Redundant wide input power supply
• Withstand voltage interruptions up to 50 ms
• IEC 61850-3 and IEEE 1613 approval
• -40 to +70 °C without ventilation holes

Description

The Lynx-RB-FT3G-MV is a compact redundancy box (RedBox) supporting High Availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP). Its innovative features and robust construction make it the ideal choice for mission critical networks that demand uninterrupted data communication. This device is designed for highest possible system availability and applications that require zero recovery time such as electrical substations. In addition, as cybersecurity threats grow in sophistication, the Lynx-RB-FT3G-MV offers an extensive suite of tools to safeguard your network.

Designed to withstand the toughest environmental conditions, the Lynx-RB-FT3G-MV is resilient against high EMI levels derived from load switching and lightning strikes. It can also endure extreme ambient temperatures and with the use of exclusively industrial-grade components it is ideal for challenging industrial settings where reliability is paramount. Compliance with industry standards is essential, and the Lynx-RB-FT3G-MV fulfills the requirements of IEC 61850 and IEEE 1613 certified by KEMA.

With its compact and DIN-mounted design, the Lynx-RB-FT3G-MV provides easy installation and saves valuable space in industrial environments. It features three combo ports and a wide input redundant power supply, maximizing flexibility and accommodating diverse network configurations.

The Lynx-RB-FT3G-MV industrial network device with RedBox functionality delivers unparalleled performance, reliability, and security for mission-critical industrial applications. Its advanced features, compliance with industry standards, and robust construction make it the ideal choice for ensuring uninterrupted and secure data communication in demanding industrial environments.


Lire plus

Caractéristiques Techniques

IEC 61850-3 Redundancy Box, Layer 2
HSR/PRP seamless redundancy
3x1G combo fiber or copper ports
KEMA approval IEC 61850-3 and IEEE 1613
