L110-F2G
Managed Ethernet Switch
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L210-F2G
Managed Ethernet Switch with Routing Functionality
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
Lynx 3310-E-F2G-T8-LV
Industrial Layer 3 Switch
8 x RJ-45, 10/100BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-E-F2G2.5-T8G-LV
Industrial Layer 3 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-F2G2.5-P8G-LV
Industrial Layer 2 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C
Lynx 3510-F2G-P8G-LV
Industrial Layer 2 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C
Lynx-RB-FT3G-MV
IEC 61850-3 Redundancy Box, Layer 2
HSR/PRP seamless redundancy
3x1G combo fiber or copper ports
KEMA approval IEC 61850-3 and IEEE 1613
Viper-212A
EN 50155 Managed Routing Switch
12 x 100 Mbps ports
1 x USB
1 x RS-232 console port

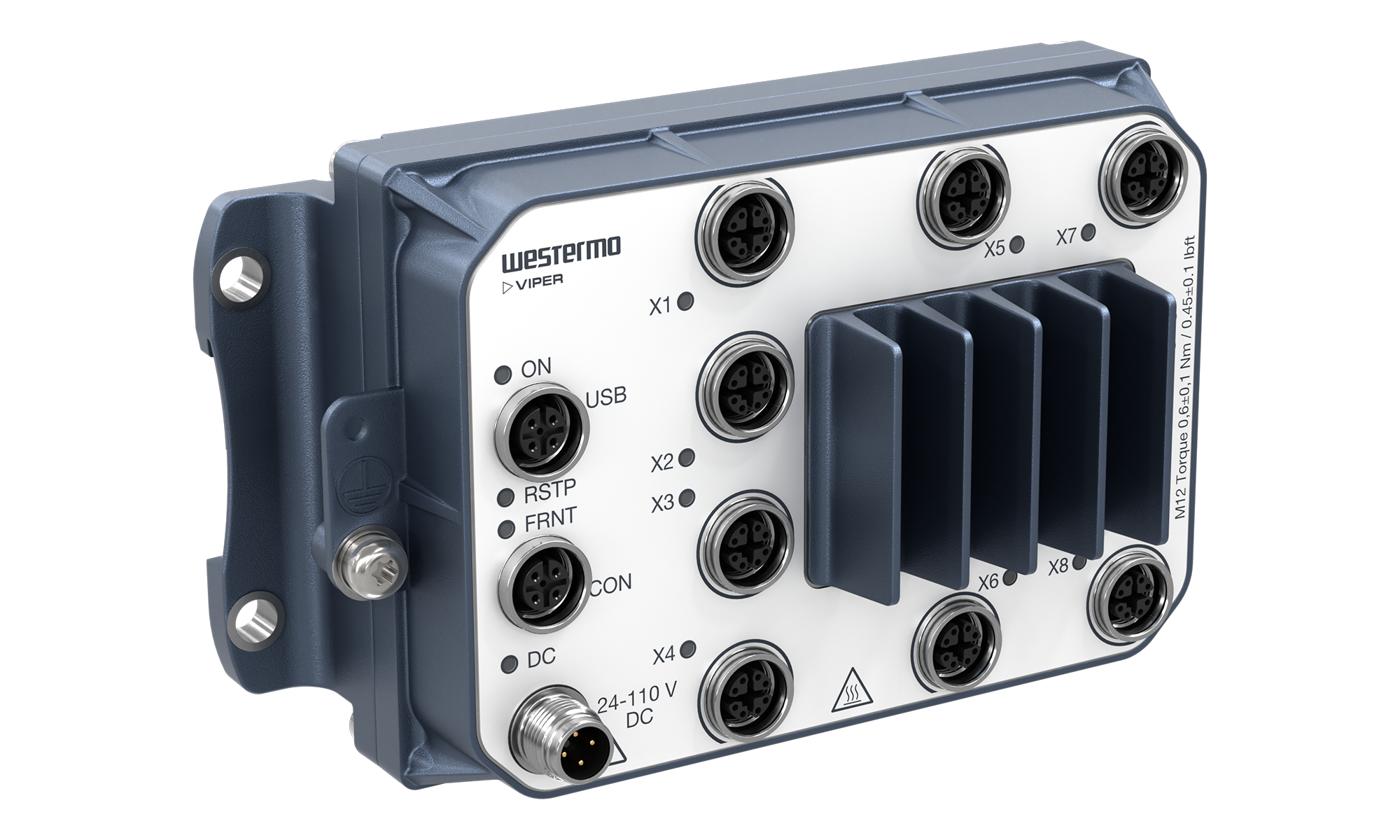

Viper-3508-E-T4G-T4-TBN
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 3 configurations
4 x 1 Gbps ports
4 x 100 Mbps ports
2 Bypass relays
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-P2G-T1-P6-PPC
EN 50155 Managed Gbps PoE Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configuration
Push-pull M12 connectors
5 x 1 Gbps ports
7 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-T1-P8-PPC
EN 50155 Managed Gbps PoE Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configuration
Push-pull M12 connectors
3 x 1 Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-T9-PPC
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & Layer 3 configurations
Push-pull M12 connectors
3 x 1 Gbps ports
9 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T4-P8-PPC
EN 50155 Managed PoE Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configuration
Push-pull M12 connectors
12 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T5G-T7-PPC
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & Layer 3 configurations
Push-pull M12 connectors
5 x 1 Gbps ports
7 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T12-PPC
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & Layer 3 configurations
Push-pull M12 connectors
12 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T2G-P2G-T10-P6-PPC
EN 50155 Managed PoE Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configuration
Push-pull M12 connectors
4 x 1 Gbps ports
16 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T4G-T16-PPC
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configurations
Push-pull M12 connectors
4 x 1 Gbps ports
16 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T12-P8-PPC
EN 50155 Managed PoE Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configuration
Push-pull M12 connectors
20 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T20-PPC
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 & layer 3 configurations
Push-pull M12 connectors
20 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
L105-S1
Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
L106-F2G
Managed Ethernet Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP Transceivers, Ethernet FX (LC) oder TX SFP (RJ-45)
L106-S2
Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L108-F2G-S2
Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L108-F2G-S2-12VDC
Managed Device Server Switch - 12 volt version
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L110-F2G-12VDC
Managed Ethernet Switch - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L205-S1
Managed Device Server Switch mit Routingfunktionalität
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
L206-F2G
Managed Ethernet Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L206-S2
Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L208-F2G-S2
Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s,
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L208-F2G-S2-12VDC
Managed Device Server Switch - 12 volt version
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L210-F2G-12VDC
Managed Ethernet Switch with Routing Functionality - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
Lynx 3306-E-F2G-T4-LV
Industrial Layer 3 Switch
4 x RJ-45, 10/100/BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3306-F2G-T4-LV
Industrial Layer 2 Switch
4 x RJ-45, 10/100/BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3310-F2G-T8-LV
Industrial Layer 2 Switch
8 x RJ-45, 10/100BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-E-F2G2.5-P8G-LV
Industrial Layer 3 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C
Lynx 3510-E-F2G-P8G-LV
Industrial Layer 3 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +70°C
Lynx 3510-E-F2G-T8G-LV
Industrial Layer 3 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx-3510-F4G-T6G-LV
Industrial Layer 2 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
4 x 1 Gbit/s, Fiber SFP ports
12 to 48 VDC
-40 to +70°C
Lynx-3510-E-F4G-T6G-LV
Industrial Layer 3 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
4 x 1 Gbit/s, Fiber SFP ports
12 to 48 VDC
-40 to +70°C
Lynx-3510-F2G2.5-F2G-T6G-LV
Industrial Layer 2 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s + 2 x 1 Gbit/s SFP Fiber ports
12 to 48 VDC
-40 to +70°C
Lynx-3510-E-F2G2.5-F2G-T6G-LV
Industrial Layer 3 Gigabit Switch
6 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s + 2 x 1 Gbit/s SFP Fiber ports
12 to 48 VDC
-40 to +70°C
Lynx 3510-F2G2.5-T8G-LV
Industrial Layer 2 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-F2G-T8G-LV
Industrial Layer 2 Gigabit Switch
8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 5512-E-F4G-T8G-LV
Industrieller GigaBit Switch
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP Transceiver, Ethernet FX (LC)
Lynx 5512-F4G-T8G-LV
Industrieller GigaBit Switch
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP Transceiver, Ethernet FX (LC)
Lynx 5612-E-F4G-T8G-LV
IEC 61850-3 Substation Automation Switch, Layer 3
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
Lynx 5612-F4G-T8G-LV
IEC 61850-3 Substation Automation Switch, Layer 2
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
PII-2G
Industrial 2-port PoE Injector
2 x 10/100/1000 TX data in ports
2 x 10/100/1000 TX IEEE 802.3af/at PoE ports
PSI-010-FT2G-P8G
Industrial Gigabit PoE+ Booster Switch
802.3at/af (PoE+/PoE) 8 x RJ-45, 10/100/1000BaseT(X)
2 x 1 Gbit/s RJ-45/SFP combo ports
Max. 240 W total PD consumption
Max. 30 W per PoE port
-40 to +75°C
RedFox-5328-F4G-T24-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5328-E-F4G-T24-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5328-F4G-T24-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5328-E-F4G-T24-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F4G-T24G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F4G-T24G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F4G-T24G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F4G-T24G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F16G-T12G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F16G-T12G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F16G-T12G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F16G-T12G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F24G-T4G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F24G-T4G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-T28G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5528-E-T28G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5528-T28G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5528-E-T28G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-HV
19" Managed Substation Automation Switch - High voltage version, layer 2
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-HV
19" Managed Substation Automation Switch - High voltage version, layer 3
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 2
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 2
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 3
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 3
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-HV
19" Managed Substation Automation Switch - High voltage version, layer 2
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 2
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 2
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-HV
19" Managed Substation Automation Switch - High voltage version, layer 3
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 3
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 3
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F24G-T4G-HV
19" Managed Substation Automation Switch
High voltage version with single power supply, layer 2
110 to 240 V AC/DC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F24G-T4G-HVHV
19" Managed Substation Automation Switch
High voltage version with dual power supply, layer 2
110 to 240 V AC/DC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F24G-T4G-HV
19" Managed Substation Automation Switch
High voltage version with single power supply, layer 3
110 to 240 V AC/DC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F24G-T4G-HVHV
19" Managed Substation Automation Switch
High voltage version with dual power supply, layer 3
110 to 240 V AC/DC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F24G-T4G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F24G-T4G-LVLV
19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F24G-T4G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F24G-T4G-LVLV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
24 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
4 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-7528-F4G10-F12G-T12G-LV
19” Managed 10 Gigabit Ethernet Switch - low voltage, layer 2
24 to 48 VDC
4 x 10 Gbit/s, SFP+
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
12 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-7528-E-F4G10-F12G-T12G-LV
19” Managed 10 Gigabit Ethernet Switch - low voltage, layer 3
24 to 48 VDC
4 x 10 Gbit/s, SFP+
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
12 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RFI-119-F4G-T7G
Managed Ethernet Switch
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-219-F4G-T7G
Industrial Routing Switch
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-219-F4G-T7G-F8
Industrial Routing Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 100 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-219-T3G
Industrial Routing Switch
3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 10/100 Mbit/s, Ethernet TX, RJ-45
SandCat-2305-F1-MM-T4-LV
Industrial Ethernet 5-port Unmanaged Switch
4 x 10/100 Base T(X) ports
1 x 100 Base F(X) multi-mode SC port
SandCat-2305-F1-SM-T4-LV
Industrial Ethernet 5-port Unmanaged Switch
4 x 10/100 Base T(X) ports
1 x 100 Base F(X) single-mode SC port
SandCat-2305-T5-LV
Industrial Ethernet 5-port Unmanaged Switch
5 x 10/100 Base T(X) ports
SandCat-3505-T5G-LV
Industrial Unmanaged Switch
5 x RJ-45, 10/100/1000 Mbit/s ports
12 - 48 VDC
-40 to +70 °C
SandCat-3505-F1G-T4G-LV
Industrial Unmanaged Switch
4 x RJ-45, 10/100/1000 Mbit/s ports
1 x 100/1000 Mbit/s SFP port
12 - 48 VDC
-40 to +70 °C
SDI-862-MM-SC2
Unmanaged 8-port Ethernet Fibre Switch
6 x 10/100 Base T ports
2 x 100 Base-FX ports multi-mode SC connector
SDI-862-SM-SC30
Unmanaged 8-port Ethernet Fibre Switch
6 x 10/100 Base T ports
2 x 100 Base-FX ports single-mode SC connector
Viper-3512-(E)-T12
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
12 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T4-P8
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
12 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-T9
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
3 x 1 Gbps Ports
9 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-T1-P8
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
3 x 1 Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T5G-T7
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
5 x 1 Gbps ports
7 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-(E)-T3G-P2G-T1-P6
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
5 x 1 Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T20
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
20 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T12-P8
EN 50155 Managed Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
20 x 100 Mbps ports, whereof 8 PoE
1 x USB backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T4G-T16
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
4 x 1 Gbps ports
16 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T2G-P2G-T10-P6
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
4 x 1 Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-(E)-T2G-P2G-T6-P10
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
4 x 1 Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 10 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3508-(E)-T8G
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 2 and layer 3 configurations
8 x 1 Gbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3508-E-T8-TBN
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 3 configurations
8 x 100 Mbps ports
2 Bypass relays
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3508-E-T8G-TBN
EN 50155 Managed Gbps Routing Switch
IEC 62443-4-2 SL2 certified
Available in layer 3 configurations
8 x 1 Gbps ports
2 Bypass relays
1 x USB Backup and restore port
1 x RS-232 console port
Viper-002-T1G-PL1
EN 50155 Gigabit Ethernet Powerline Bridge
1 x 1 Gbps Ethernet port
1 x 2-wire cable port
Viper-002-T1-PL1
EN 50155 Fast Ethernet Powerline Bridge
1 x 100 Mbps Ethernet port
1 x 2-wire cable port
Viper-208-T8G-TBN
Managed EN 50155 Backbone-Routing-Switch
8 x Gbps ports
1 x USB
Konsolen-Port
1 x RS-232
Viper-208-T8G-TBN
Managed EN 50155 Backbone-Routing-Switch
8 x Gbps ports
1 x USB
Konsolen-Port
1 x RS-232
Viper-208-T8G
Managed Gigabit Routing Switch
8 x1 Gbps ports
1 x USB
1 x RS-232 console port
Viper-208-T4G-TBN
Managed EN 50155 Backbone-Routing-Switch
4 x Gbps ports
4 x 100 Mbps ports
1 x USB
Konsolen-Port
1 x RS-232
Viper-112A-P8-HV
EN 50155 Managed PoE Switch - high voltage version
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-P8-LV
EN 50155 Managed PoE Switch - low voltage version
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-P8-HV
EN 50155 Managed PoE Routing Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-P8-LV
EN 50155 Managed PoE Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T3G
EN 50155 Managed Gbps Switch
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A-T3G
EN 50155 Managed Gbps Routing Switch
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-112A-T3G-P8-HV
EN 50155 Managed Gbps PoE Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T3G-P8-LV
EN 50155 Managed Gbps PoE Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T5G
EN 50155 Managed Gbps Switch
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A-T5G
EN 50155 Managed Gbps Routing Switch
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-112A-T5G-P8-HV
EN 50155 Managed Gbps PoE Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T5G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T5G-P8-LV
EN 50155 Managed Gbps PoE Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T5G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-220A
EN 50155 Managed Routing Switch
20 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-120A-P8-HV
EN 50155 Managed PoE Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-220A-P8-HV
EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-120A-P8-LV
EN 50155 Managed PoE Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-220A-P8-LV
EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-120A-T4G
EN 50155 Managed Gbps Switch
4 x Gbps ports
16 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-220A-T4G
EN 50155 Managed Gbps Routing Switch
4 x Gbps ports
16 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-120A-T4G-P8-HV
EN 50155 Managed Gbps PoE Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-220A-T4G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
