Industrial 4G LTE Router with PoE+ support



✔ Powerful rugged 4G (LTE) router with PoE

• Wide LTE band coverage APAC & EMEA
• PoE & PoE+ support
• IP-54 housing

✔ High availability Cellular connectivity

• Continuous testing of the connection to the cellular network
• Configurable roaming functions
• Dual SIM cards

✔ VPN and security

• IPsec, SSL (Open VPN) and DMVPN
• IIKE V2, SHA 2, TLS 1.2, AES 256 & DH 8192
• IX.509 and SCEP certificate handling

✔ Routing and Firewall

• Inbuilt inspect state firewall
• OSPF, Rip and BGPv4

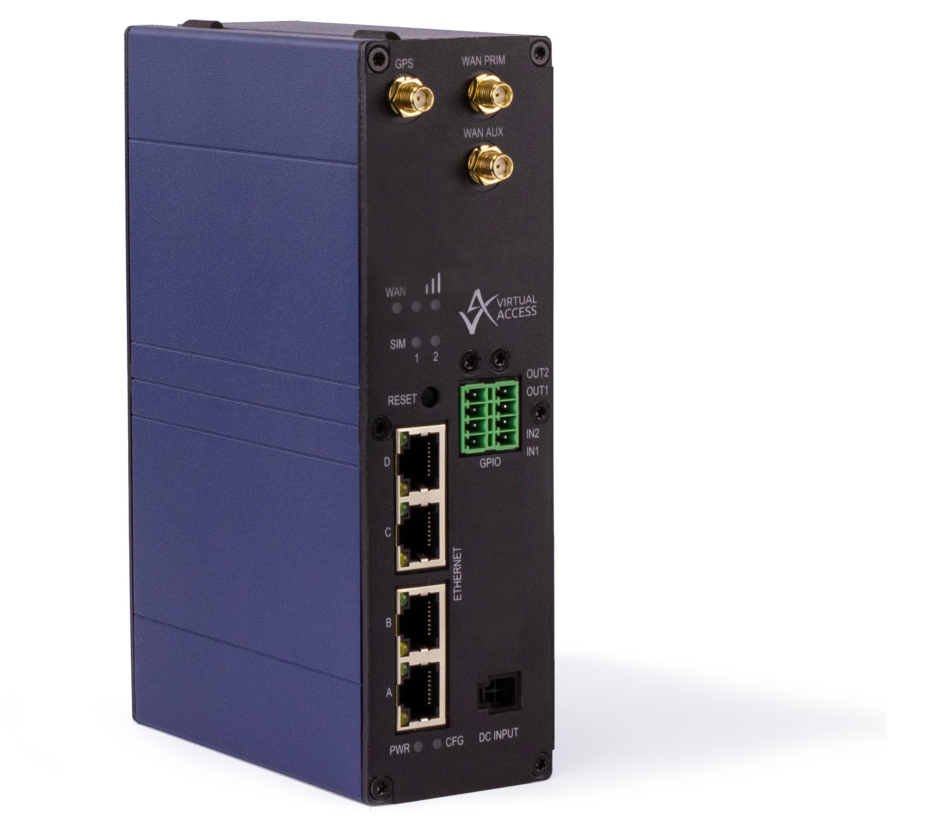

The GW2300 Series router has been designed for remote access applications in the harshest of environments, such as unmanned roadside cabinets, railway trackside and pole-top smart grid applications over 4G. The PoE+ capability supplies up to 60W of power across the 4 Ethernet ports to power cameras with PTZ or other PoE devices. Digital I/O options make this a very versatile device for many industrial applications.

GbE Ethernet Ports
The GW2300 Series router supports up to four 10/100/1000Mbps Ethernet interfaces. They can be configured as a single interface with Ethernet switching between them or as separate router interfaces.

The GW2300 Series supports up to four PoE ports with a total budget of 60W. The power management can allocate all the power to 2 ports for POE+ applications or spread the available power across all 4 ports depending on the power class of the connected device.

GPS Receiver
The GW2300 Series router includes a GPS receiver for positioning information, such as vehicle position in open cast mines or other application where knowing the position of the router is important. The GPS socket has a DC voltage to power an active GPS antenna.

SMS Management
The GW2300 Series router also supports SMS, so if the packet switched side of the network is down, commands can be sent to the router to perform diagnostics or even a reboot.

Ingress Protection
The GW2300 Series has been designed with rubber seals around each connector, providing an IP40 ingress protection rating.

Automatic Failover
The GW2300 can be configured to use any interface as a WAN connection. The management of the GW2304W is able to fall backwards and forwards between media interface depending on the availability.

DIN Rail Mounting
A DIN rail clip is included, which enables simple mounting for industrial applications. Optional rubber feet can be supplied for table mounting.

Centralised Management and Monitoring
The GW2300 Series router benefits from Activator, our centralised configuration management and monitoring system. Activator simplifies and automates deployment, management and support tasks in managed network environments.

mehr dazu

Technische Daten

Industrial PoE+ LTE Router
4 x 100/1000 Mbit/s, PoE+, RJ-45
2 x Digital input
2 x Relay contact output
2 x Micro SIM card slot
1 x GPS SMA female antenna connector
